Your industrial equipment keeps shutting down from bad power connections. This unexpected downtime costs you money and time. You need a reliable solution that just works.

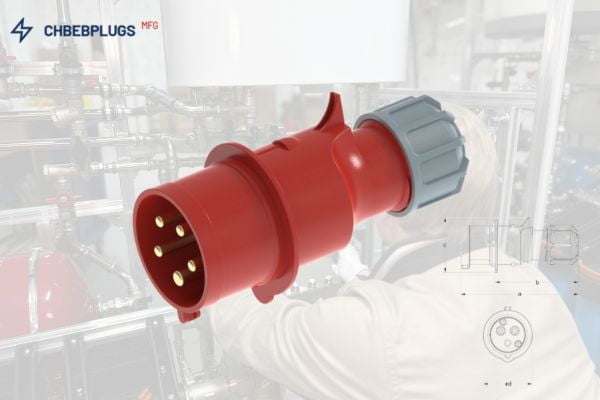

A 32A 3-phase industrial plug connector1 is a heavy-duty electrical connector designed for three-phase power systems up to 32 amps. It typically features a 5-pin (3P+N+E) configuration2, providing a secure and reliable power supply for high-demand industrial machinery in challenging environments.
Choosing the right connector is not just about power. It’s about safety, efficiency, and preventing costly downtime. In industrial environments, even a single unreliable power connector can disrupt entire operations. Let me walk you through what makes these connectors essential—and share a real story that shows their true value.
What Key Features Make This Connector So Reliable in Harsh Environments?
Standard plugs often fail in wet, dusty, or busy workplaces. This failure leads to serious safety risks and expensive production stops. You need a connector with features built for these conditions.
Reliability in harsh industrial environments depends on several design features, including an IP44 waterproof rating3, a concealed wiring design, high-conductivity brass conductors, and a durable ABS housing4. An anti-shedding locking mechanism further secures the connection to prevent accidental unplugging.
I remember working with a logistics park client at the Tanjung Priok Port in Jakarta. Their operation was struggling with frequent power failures. After understanding their challenges, we recommended our 32A 5-pin connector. The specific features of this connector directly solved their biggest problems.

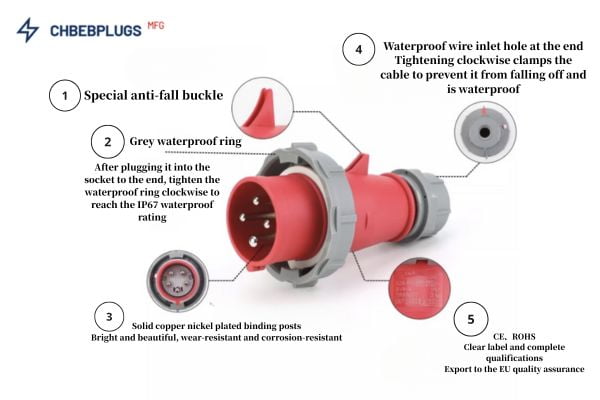

Concealed Design and Anti-Shedding Buckle
The client’s logistics park was a busy place. Forklifts moved around constantly. Their old connectors had exposed wires, which were often snagged by passing vehicles. This would pull the plug out, shutting down a sorting line or a forklift charging station. Our connector’s concealed design solved this. The wires are hidden inside the mounting, creating a clean and safe surface. We also added a special anti-shedding buckle. This small lock makes sure the plug and socket stay firmly connected, even if they get bumped. It completely eliminated the problem of accidental disconnections.
Material Quality and Conductivity
The port environment is tough. It is hot, dusty, and humid. Our connector’s shell is made from high-quality ABS material. This material provides excellent insulation and is very resistant to heat, which was perfect for Jakarta’s average daytime temperature of 32°C. Inside, the connector uses solid brass conductor rods. Brass is a great conductor of electricity. This ensures a stable and efficient power flow to heavy machinery like gantry cranes and sorting lines. The client noticed their equipment started up faster and ran more smoothly because the power supply was so consistent.
| Feature | Client's Problem | How It Solved the Problem |
|---|---|---|
| Concealed Design | Exposed wires snagged by forklifts. | Hides wiring, creating a neat and safe installation. |
| Anti-Shedding Lock | Plugs disconnected from accidental bumps. | Securely fastens the plug to the socket, preventing removal. |
| ABS Housing | Overheating and material degradation in the heat. | Provides heat resistance and durable insulation. |
| Brass Conductors | Poor contact, unstable power for machinery. | Ensures strong, efficient conductivity for stable operation. |
These features combined to create a solution that was tough, safe, and incredibly reliable.

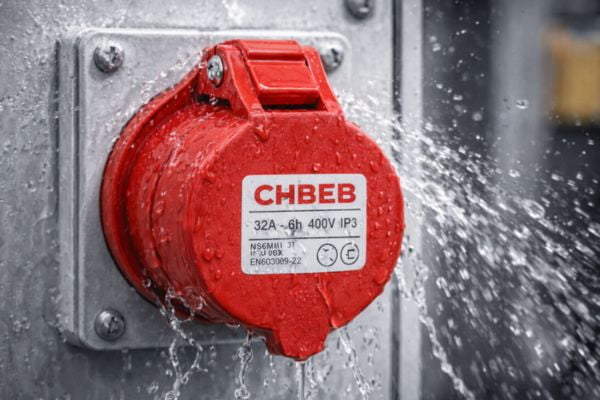

Why Is an IP44 Rating Crucial for Outdoor and Industrial Use?
Water is a constant threat to electrical equipment, especially outdoors. A single splash can cause a short circuit, bringing your entire operation to a halt. You need protection you can trust.
An IP44 rating guarantees protection against solid objects over 1mm and water splashes from any direction. This level of ingress protection is essential for equipment used in environments with rain, humidity, or cleaning processes, preventing short circuits and ensuring safety.
The IP rating system is simple. The first digit rates protection against solids, and the second rates protection against liquids. For our Jakarta client, the IP44 rating was a game-changer. Jakarta has a long rainy season, with rain almost every other day. Their old outdoor forklift charging stations would constantly short-circuit when splashed by rain. This caused at least 3-4 shutdowns every month, each lasting for hours. The financial loss from downtime and order delays was significant.
IP44: The Right Protection for Splashes
Our IP44-rated connector is specifically designed to prevent the ingress of splashed water. It was the perfect fit for their needs. They didn't need a connector that could be submerged (like IP67), but they absolutely needed one that could handle rain and water splashes from all directions. After installing our connectors, they had zero power failures due to water damage through the entire rainy season. This simple feature saved them countless hours of downtime and protected their equipment.
Understanding IP Ratings
Choosing the right IP rating is about matching the protection to the environment. Over-specifying can be costly, while under-specifying is dangerous.
| IP Rating | Solids Protection (1st Digit) | Liquids Protection (2nd Digit) | Best Use Case |
|---|---|---|---|
| IP44 | >1mm (tools, wires) | Splashes from any direction | General indoor/outdoor, rain, workshops |
| IP55 | Dust protected | Low-pressure water jets from any direction | Dusty environments, wash-down areas |
| IP67 | Dust-tight (total protection) | Immersion up to 1m | Temporary submersion, harsh wash-down |
For the Jakarta port, IP44 provided the exact level of protection required, making it a cost-effective and highly successful solution.
Where Are These 32A 3-Phase Connectors Typically Used?
You have powerful 3-phase machinery, but you need a safe way to connect it. Using the wrong plug can damage expensive equipment or create a serious safety hazard. You need a connector designed for your specific application.

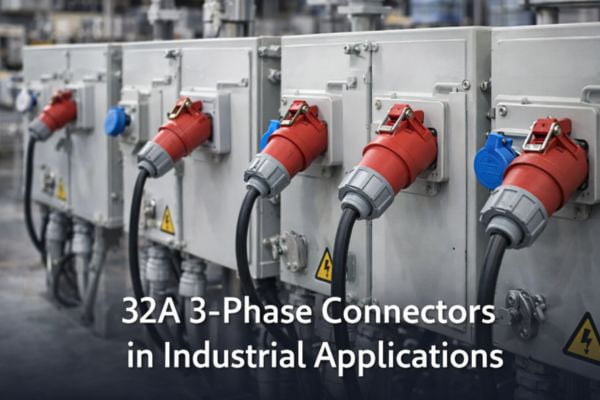

These 32A 3-phase connectors are widely used in industrial, agricultural, and chemical sectors. They are ideal for powering gantry cranes, forklift charging stations, sorting lines, power plants, airport equipment, and machinery at docks and railways.
The versatility of this connector is one of its greatest strengths. It is built to handle the demands of various heavy-duty environments. The Tanjung Priok Port project is a perfect example. They used the same connector across their entire logistics park for very different types of equipment. It worked perfectly for the high-torque gantry cranes, the constant use of the forklift charging stations, and the continuous operation of the automated sorting lines.
Powering Diverse Industrial Operations
The key is that all this equipment runs on a 3-phase power supply and needs a connection that can withstand a tough environment. The 32A 5-pin (3P+N+E) configuration and wide voltage range (220-380V/240-415V) make it adaptable. It can handle the slight voltage fluctuations often found in industrial power grids without affecting performance. The dust and splash protection makes it suitable for both indoor factory floors and outdoor work zones. This is why we see it used in so many different places.
Common Applications
| Application Area | Why This Connector is a Good Fit |
|---|---|
| Ports & Docks | Resists moisture, salt spray, and physical impact from vehicles. |
| Construction Sites | Durable and safe for temporary power distribution to tools. |
| Factories | Reliably powers assembly lines, CNC machines, and pumps. |
| Agriculture | Powers irrigation systems and heavy machinery in dusty, damp conditions. |
| Event Venues | Provides safe, mobile power for lighting rigs and sound systems. |
After the success at the Jakarta port, the client ordered 200 more sets. They even recommended us to two other port logistics companies in Indonesia. That is because this connector is a proven solution for nearly any demanding industrial setting.
Conclusion
In industrial environments, power failures are rarely caused by the machine itself — they are often caused by unreliable connections. As shown in real port and logistics operations, a properly designed 32A 3-phase connector — with secure locking, adequate IP protection, and stable conductive materials — can eliminate accidental disconnections, resist harsh conditions, and keep equipment running consistently.
Choosing the right connector is not just a specification decision. It is a practical step toward safer operations, lower maintenance costs, and uninterrupted industrial performance.
