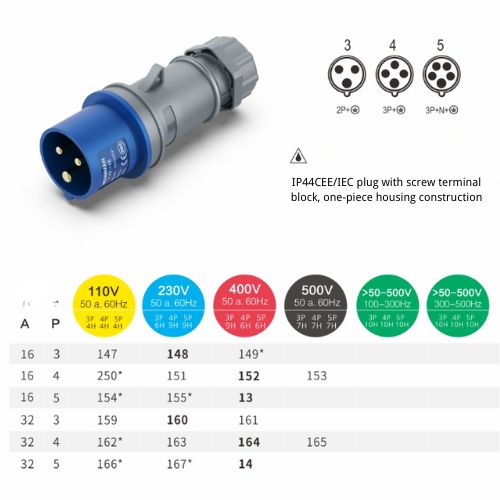

Product Overview
The CHBEB 16A 3-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for industrial and commercial applications.
With a rated current of 16A, rated voltage of 230V, and IP44 protection, this plug offers stable performance against dust and water splashes. The blue color coding with a 6h clock position ensures correct voltage identification and prevents incorrect connections.
Featuring a split-type structure, it allows easier installation and maintenance, making it suitable for flexible wiring and on-site assembly.
It is widely used in single-phase industrial equipment, workshops, temporary power distribution, and construction sites.
What Is a 16A 3-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 16A 3-pin industrial plug is a standardized single-phase power connector defined by IEC 60309, designed to supply 230V power to industrial and commercial electrical equipment.
It features a 2P+E pin configuration, ensuring reliable grounding, stable current transmission, and safe operation in demanding working environments.
Key Specifications
- Rated current: 16A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue
- Structure: Split-type design
- Standard: IEC 60309
- Application: Industrial and commercial power connection

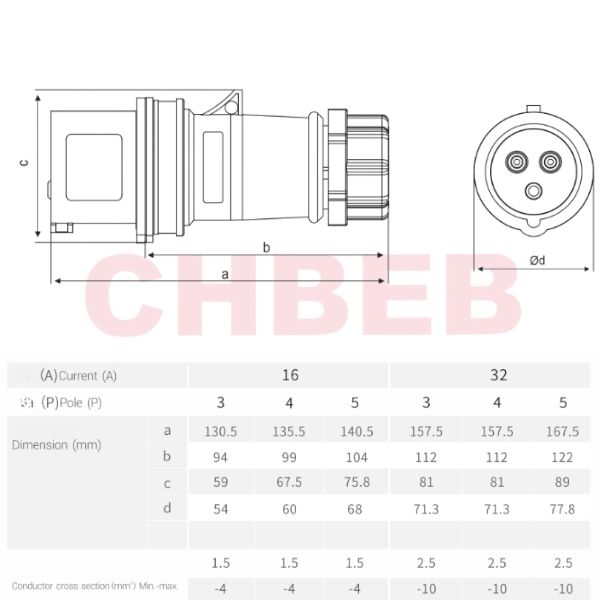

Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-148 |
| Product Type | Industrial Plug |
| Rated Current | 16A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Structure | Split-type design |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 16A 3-pin IEC 60309 industrial plug is commonly used in:
- Single-phase industrial machinery
- Construction sites and temporary power systems
- Power distribution boards and extension cables
- Portable equipment and generators
- Workshops and factory installations
FAQ
Is this plug compatible with European CEE sockets?
Yes. This plug fully complies with IEC 60309 standards and is compatible with standard European CEE industrial sockets.
What does the blue color and 6h position mean?
The blue color indicates 230V single-phase voltage, and the 6h clock position ensures correct alignment and prevents misconnection.
What is the advantage of the split-type design?
The split-type structure allows easier cable installation and maintenance, making it ideal for on-site wiring and flexible industrial applications.
Is IP44 suitable for outdoor use?
IP44 protection is suitable for indoor and semi-outdoor environments, protecting against dust and water splashes.
