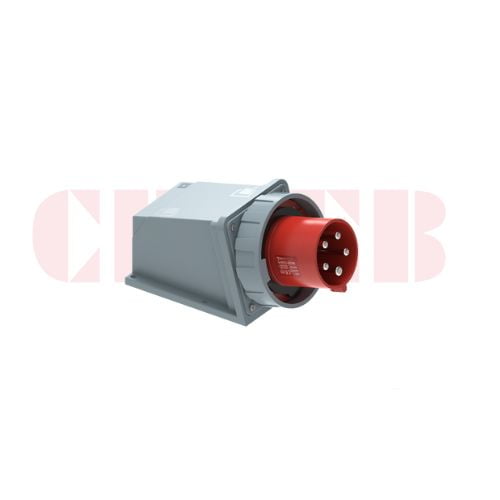

Product Overview
The 63A 5-pin panel mounted industrial plug is manufactured in accordance with IEC 60309 standards and is designed for fixed installation on industrial equipment and power distribution systems.
With a rated current of 63A, rated voltage of 400V, IP67 protection rating, and a standardized 6h clock position, this plug provides safe, stable, and reliable power connections for three-phase systems requiring a neutral conductor.
Its panel mounted design ensures secure installation on electrical enclosures, control cabinets, and distribution boxes, making it suitable for harsh industrial and outdoor environments.
What Is a 63A 5-Pin Panel Mounted Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin panel mounted industrial plug is an IEC 60309 standardized connector designed for fixed installation, supplying 400V three-phase power with neutral and protective earth connections.
It is widely used in industrial power systems that require high current capacity, neutral line support, and enhanced environmental protection.
Key Specifications
- Rated Current: 63A
- Poles: 5P (3P + N + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Panel Mounted
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 63A |
| Number of Poles | 5P (3P + N + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Panel Mounted |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Three-phase industrial equipment with neutral line
- Electrical enclosures and control cabinets
- Power distribution panels
- Heavy-duty industrial machinery
- Outdoor and harsh environment installations
