Product Overview

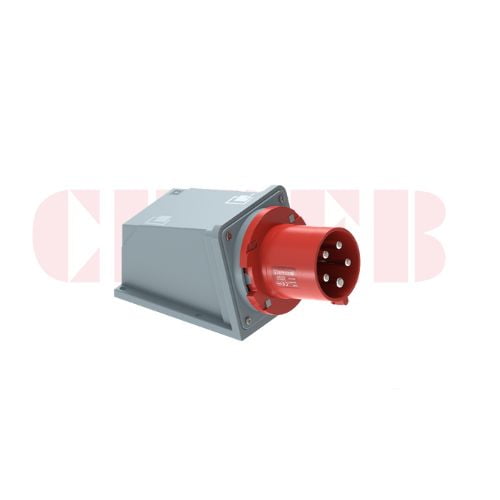

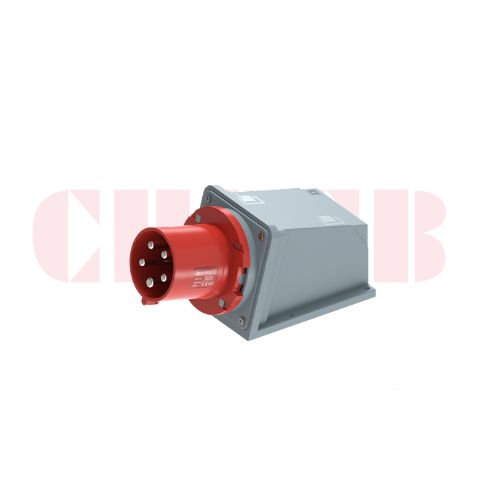

The 63A 5-pin panel mounted industrial plug is manufactured in accordance with IEC 60309 standards and is designed for fixed installation on industrial equipment and power distribution systems.
With a rated current of 63A, rated voltage of 400V, IP44 protection rating, and a standardized 6h clock position, this plug ensures correct phase identification, stable current transmission, and reliable grounding for three-phase industrial power applications.
Its panel mounted structure allows secure and permanent installation on control cabinets, distribution boxes, and machinery enclosures, providing a dependable industrial power inlet.
What Is a 63A 5-Pin Panel Mounted Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin panel mounted industrial plug is an IEC 60309 standardized connector designed for fixed installation, supplying 400V three-phase industrial power with neutral and earth conductors.
It is widely used in industrial power systems requiring stable power input, standardized connections, and enhanced safety for high-current equipment.
Key Specifications
- Rated Current: 63A
- Poles: 5P (3P + N + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP44
- Clock Position: 6h
- Mounting Type: Panel Mounted
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 63A |
| Number of Poles | 5P (3P + N + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Mounting Type | Panel Mounted |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Industrial equipment power inlets
- Control cabinets and distribution panels
- Three-phase power systems with neutral
- Machinery and electrical installations
- Factories and industrial facilities
