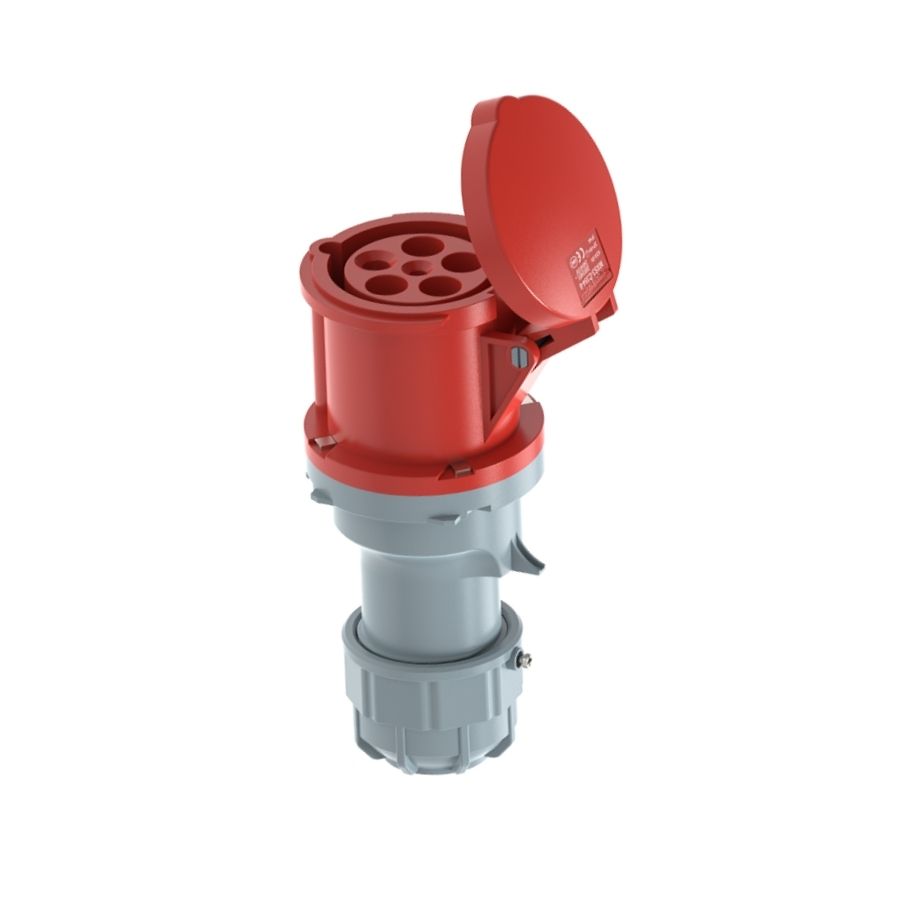

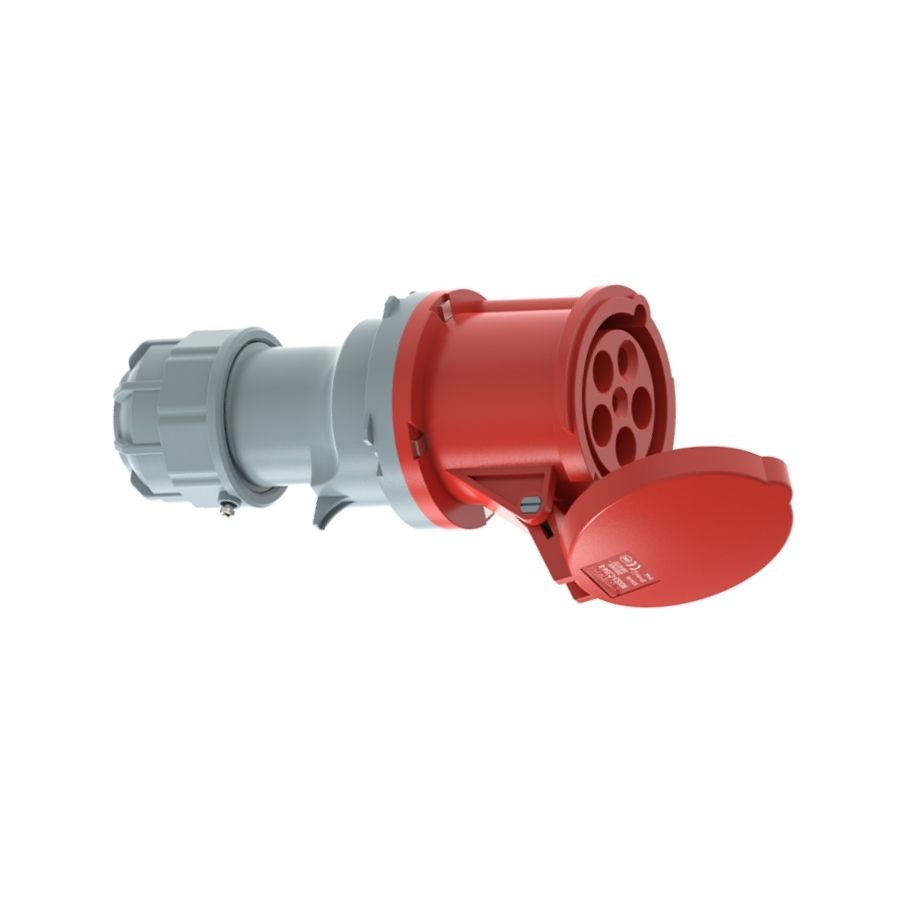

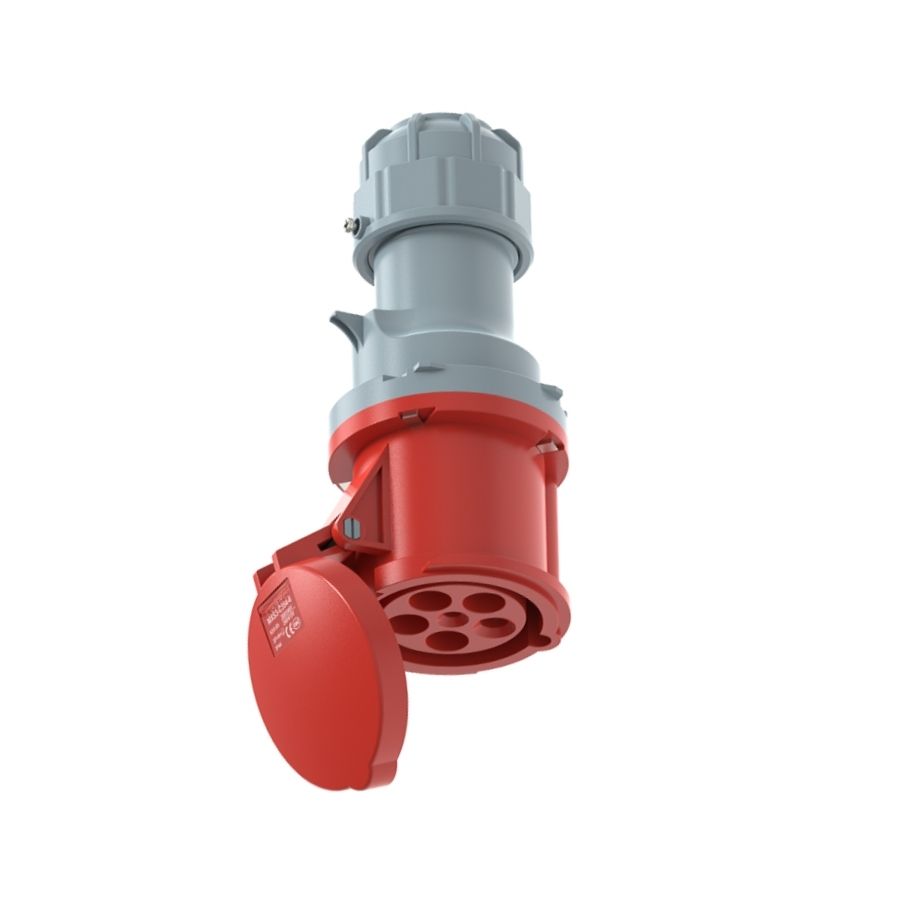

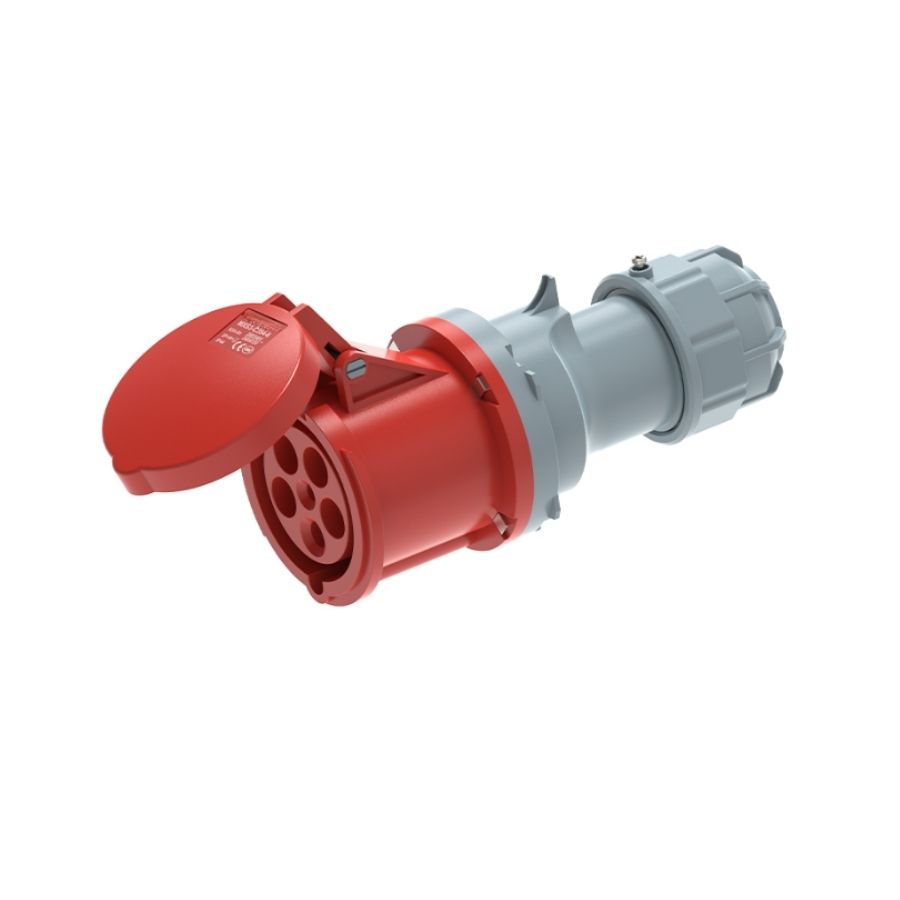

Product Overview
The 63A 5-Pin industrial connector is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 63A, rated voltage of 400V, IP44 protection, and a defined 6h clock position, this connector ensures correct mating, stable current transmission, and effective protection against splashing water in industrial environments.
The inline connector structure supports secure cable termination and reliable locking, making it suitable for mobile equipment, industrial extension cables, and temporary power distribution systems.
What Is a 63A 5-Pin Industrial Connector?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin industrial connector is a standardized IEC 60309 power connector designed to supply 400V three-phase industrial electricity with neutral and earth conductors for high-current equipment.
Its inline construction allows flexible cable assembly and secure connections, making it ideal for portable machinery, heavy-duty extension power systems, and temporary industrial power applications.
Key Specifications
- Rated Current: 63A
- Poles: 5P (3P + N + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP44
- Clock Position: 6h
- Mounting Type: Inline (Portable)
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 63A |
| Number of Poles | 5P (3P + N + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Mounting Type | Inline / Portable |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- Heavy-duty industrial extension power cables
- Portable and mobile industrial machinery
- Temporary power distribution systems
- Workshops and factory equipment
- Construction sites and maintenance operations
