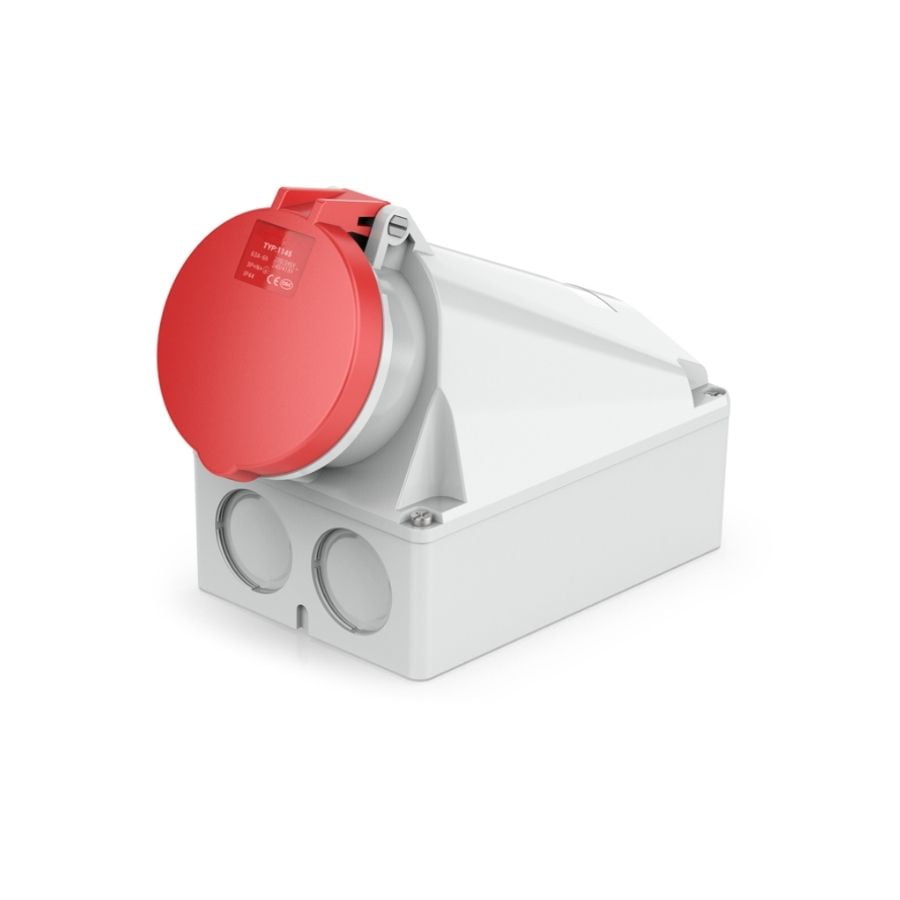

Product Overview
The CHBEB 63A 5-Pin Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable high-current three-phase power connections with a neutral conductor for industrial and commercial electrical applications.
With a rated current of 63A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this industrial socket is engineered to handle very heavy electrical loads while offering protection against solid objects and water splashes. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is widely used in main power distribution systems, heavy-duty machinery, construction sites, and temporary or fixed high-current industrial installations.
What Is a 63A 5-Pin Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity with a neutral conductor for high-power industrial equipment.
It features a 3P+N+E pin configuration with a 6h clock position, ensuring correct phase alignment, neutral availability, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: High-current three-phase industrial power connection with neutral
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1145 |
| Product Type | Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 63A 5-pin IEC 60309 industrial socket is commonly used in:
- Main and sub power distribution panels
- Heavy-duty three-phase industrial machinery
- Construction sites and large workshops
- Generators and transformer connections
- Industrial systems requiring neutral conductor
FAQ
When should I choose a 5-pin 63A industrial socket?
A 5-pin 63A industrial socket is required when the electrical system needs a neutral conductor in addition to three phases and earth, especially for mixed loads or control circuits in high-power installations.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 5-pin IEC 60309 industrial plugs.
Is IP44 suitable for 63A industrial applications?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is sufficient.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and high-current load testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
