Product Overview

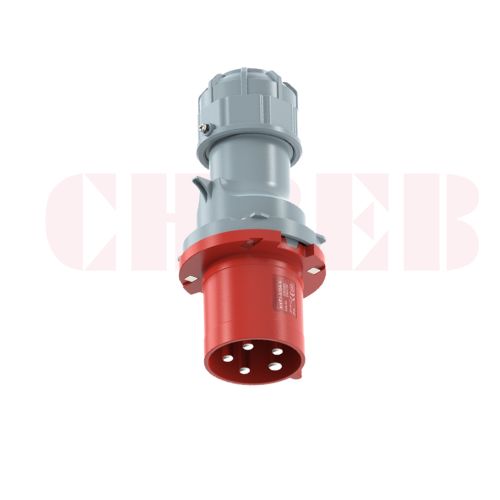

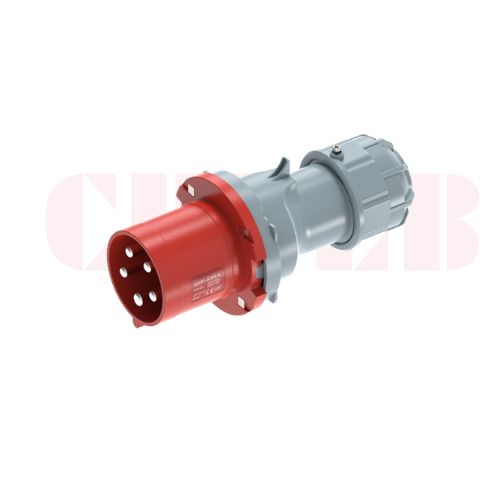

The CHBEB Harmony Series 63A industrial plug is designed for high-current three-phase power connections requiring a neutral conductor.
With a 5-pin configuration and a rated voltage of 400V, this plug ensures stable and safe power transmission for industrial equipment and power distribution systems.
Its IP44 protection rating provides effective protection against solid objects and water splashes, making it suitable for indoor and semi-protected industrial environments.
What Is a 63A 5-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin industrial plug is a high-current power connector rated for 400 volts, designed with three phase conductors, a neutral conductor, and a protective earth to deliver reliable three-phase electrical power in industrial applications.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P + N + PE)
- Clock position: 6H
- Protection rating: IP44
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A354-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 3P + N + PE |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Pin Material | Brass H59 |
Applications
This 63A 5-pin industrial plug is designed for three-phase power systems that require a neutral conductor and stable 400V power delivery.
- Three-phase industrial machinery with neutral requirement
- Power distribution panels
- Factory production lines
- Temporary industrial power connections
- Industrial equipment requiring balanced three-phase power
