Product Overview

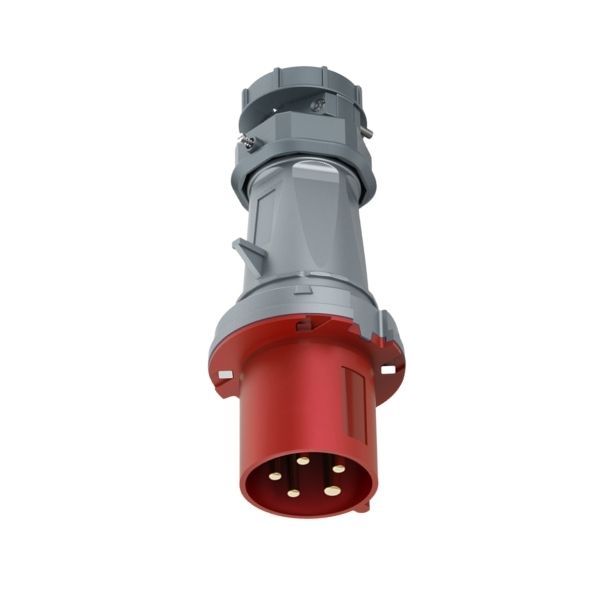

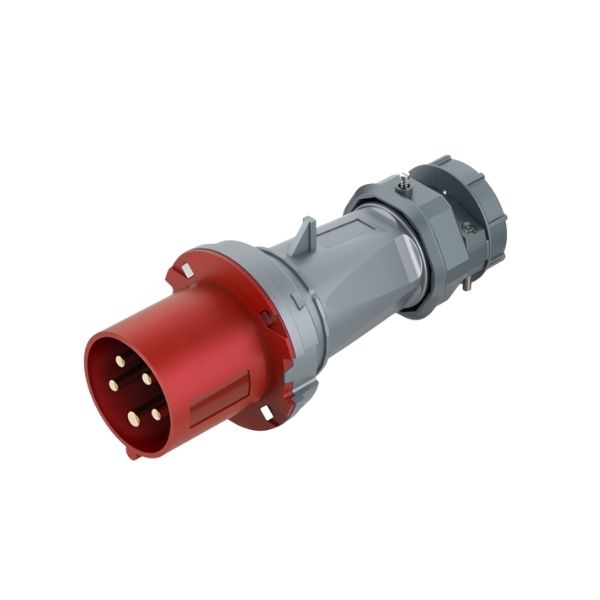

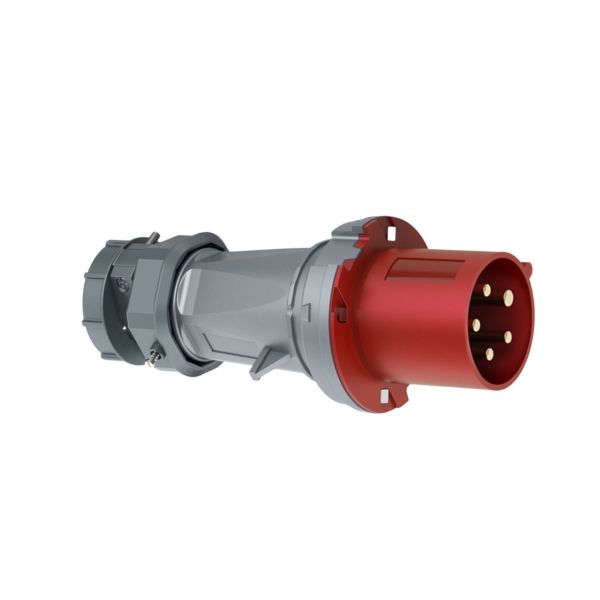

The CHBEB 63A industrial plug is designed for high-current three-phase power applications operating at 400V.
With a 5-pin configuration, it supports stable phase, neutral, and earth connections required by industrial equipment.
Its IP44 protection rating makes it suitable for industrial environments where protection against splashing water and solid objects is required.
What Is a 63A 5-Pin Industrial Plug?
A 63A 5-pin industrial plug is a heavy-duty electrical connector designed for three-phase power systems, delivering up to 63 amperes at 400 volts with phase, neutral, and earth connections for industrial power distribution.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (5P)
- Clock position: 6H
- Protection rating: IP44
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1235 |
| Product Type | Industrial Plug |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 5P |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Pin Material | H59 Brass |
| Housing | Reinforced Engineering Plastic |
Applications
This 63A 5-pin industrial plug is suitable for three-phase power systems that require neutral and earth connections in industrial environments.
- Three-phase industrial machinery with neutral requirement
- Factory and workshop power distribution systems
- Heavy-duty equipment operating at 400V
- Temporary and mobile industrial power setups
- Industrial environments requiring IP44-rated connectors
