Product Overview
The CHBEB MX Series 63A 5-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards, providing a reliable and waterproof panel-mounted power connection for high-current three-phase industrial applications.
With a rated current of 63A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this socket ensures stable and safe power transmission in harsh environments exposed to dust, moisture, and water ingress. The red color coding and 6h clock position prevent incorrect connections and ensure voltage compatibility.

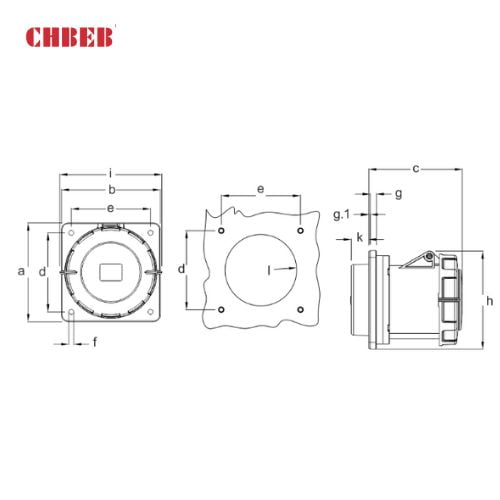

The flanged mounting design allows secure installation on control panels, power distribution cabinets, and industrial equipment, making it ideal for fixed and outdoor power supply systems.
What Is a 63A 5-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin flanged industrial socket is an IEC 60309 standardized panel-mounted power outlet designed to deliver 400V three-phase industrial power with neutral and grounding, featuring high current capacity and waterproof protection.
It is commonly used in industrial environments where stable three-phase power and environmental protection are critical.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B356-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP67 5-pin flanged industrial socket is widely used in:
- Three-phase industrial machinery and equipment
- Outdoor power distribution systems
- Power distribution cabinets and control panels
- Construction sites and temporary power systems
- Harsh environments requiring waterproof protection
FAQ
What is the advantage of a 5-pin (3P+N+E) configuration?
The 5-pin configuration provides three-phase power with neutral and grounding, ensuring balanced loads and safe operation for industrial equipment.
Is this socket suitable for outdoor use?
Yes. With IP67 protection, it is fully suitable for outdoor and harsh industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. It fully complies with IEC 60309 standards and is compatible with all corresponding 63A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- High-quality brass contacts for stable conductivity
- OEM and customization services available
