Product Overview

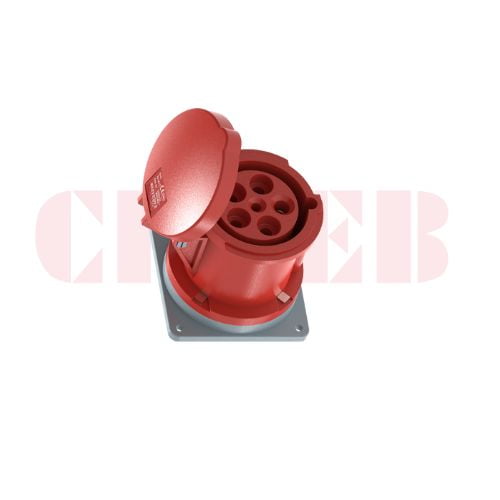

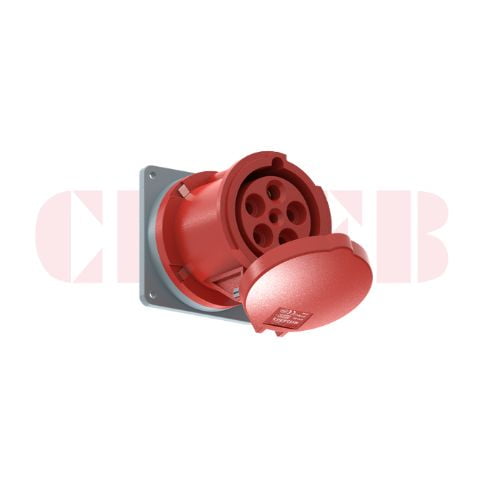

The CHBEB MX Series 63A 5-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for reliable panel-mounted power connections in three-phase industrial systems requiring a neutral conductor.
With a rated current of 63A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this socket provides stable power transmission and protection against solid objects and water splashes. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
The flanged mounting design allows secure installation on control panels, distribution boards, and industrial equipment, making it ideal for fixed and semi-fixed power applications.
What Is a 63A 5-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, designed for panel mounting and used to safely distribute 400V industrial power.
It ensures stable phase distribution, neutral continuity, reliable grounding, and safe operation in demanding industrial environments.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B354-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP44 5-pin flanged industrial socket is widely used in:
- Three-phase equipment requiring neutral connection
- Industrial control panels and power distribution boards
- Factories and production facilities
- Fixed and semi-fixed industrial power outlets
- Machinery with mixed three-phase and single-phase loads
FAQ
Why choose a 5-pin socket instead of a 4-pin socket?
A 5-pin socket includes a neutral conductor, making it suitable for equipment that requires both three-phase and single-phase power.
Is IP44 suitable for industrial use?
Yes. IP44 protection is suitable for indoor and semi-outdoor industrial environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable panel-mounted structure for industrial installations
- OEM and customization services available
