Product Overview

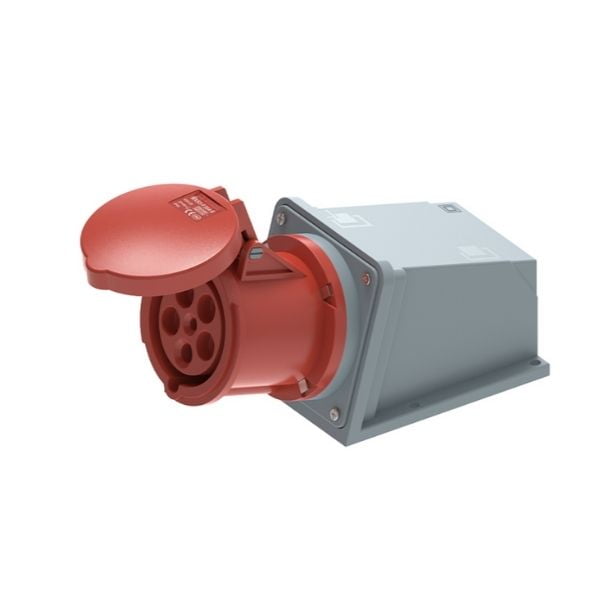

The CHBEB MX Series 63A 5-Pin Enclosed Industrial Socket is designed in accordance with IEC 60309 standards and integrated into a robust protective enclosure, providing safe and stable power distribution for high-current three-phase industrial systems.
With a rated current of 63A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this enclosed socket offers reliable performance against dust and water splashes. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
The MX Series enclosure provides enhanced mechanical protection, making this socket suitable for fixed installations, industrial equipment connections, and power distribution points.
What Is a 63A 5-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 5-pin enclosed industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, housed in a protective enclosure and designed to safely distribute 400V high-current industrial power.
It ensures stable phase distribution, neutral continuity, reliable grounding, and enhanced safety in demanding industrial environments.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F354-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP44 5-pin enclosed industrial socket is widely used in:
- Three-phase equipment requiring neutral connection
- Industrial machines with mixed loads
- Factories and production facilities
- Industrial power distribution boards
- Fixed and semi-fixed industrial installations
FAQ
Why choose a 5-pin socket instead of 4-pin?
A 5-pin socket includes a neutral conductor, making it suitable for equipment that requires both three-phase and single-phase loads.
Is IP44 suitable for industrial environments?
IP44 protection is ideal for indoor and semi-outdoor applications where protection against solid objects and water splashes is required.
Is this socket compatible with standard IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable enclosure for high-current industrial use
- OEM and customization services available
