Product Overview

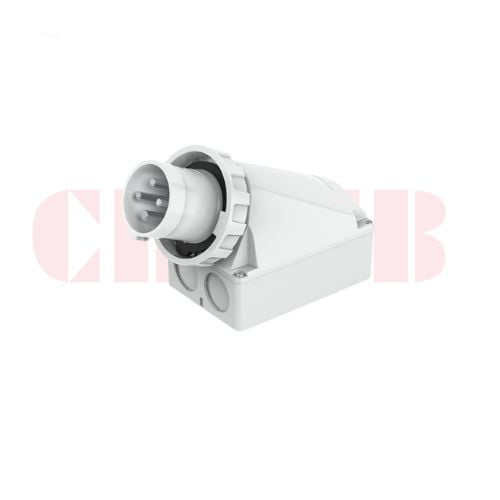

The 63A 4-pin wall mounted industrial plug is manufactured according to IEC 60309 standards, providing a reliable fixed power connection for high-current three-phase industrial systems.
With a rated current of 63A, rated voltage of 400V, IP67 protection rating, and a standardized 6h clock position, this plug ensures correct phase alignment, secure electrical contact, and excellent resistance to dust and water ingress.
Designed for permanent installation, the wall mounted structure allows safe and stable integration into electrical panels and equipment enclosures in harsh industrial environments.
What Is a 63A 4-Pin Wall Mounted Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin wall mounted industrial plug is an IEC 60309 standardized power connector designed for fixed installation, delivering 400V three-phase industrial power with earth protection.
It is widely used in industrial applications requiring high current capacity, waterproof protection, and secure long-term power connections.
Key Specifications
- Rated Current: 63A
- Poles: 4P (3P + E)
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Wall Mounted / Panel Mounted
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 63A |
| Number of Poles | 4P (3P + E) |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Wall Mounted / Panel Mounted |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- High-current three-phase industrial equipment
- Fixed power distribution panels
- Factories and heavy-duty machinery
- Outdoor and harsh industrial environments
- Permanent industrial power installations
