Product Overview

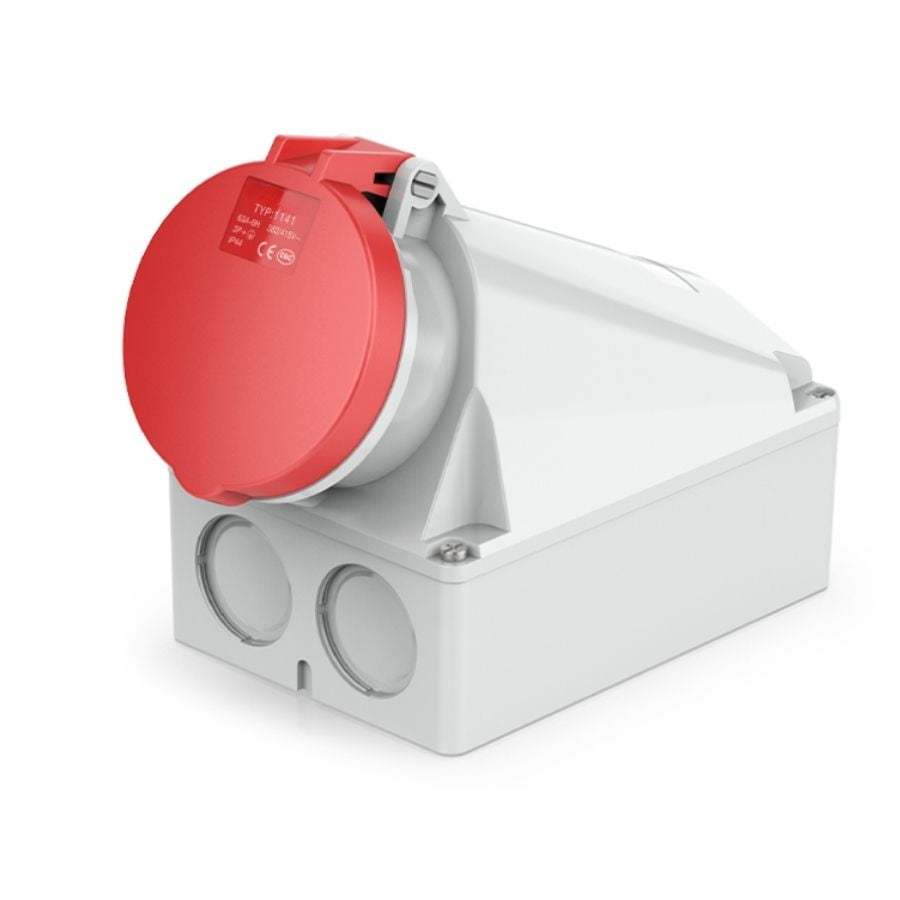

The CHBEB 63A 4-Pin Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable three-phase high-current power connections for industrial and commercial electrical applications.
With a rated current of 63A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection, this industrial socket is built to handle heavy electrical loads while offering protection against solid objects and water splashes. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is widely used in heavy-duty industrial machinery, power distribution panels, construction sites, and temporary or fixed high-current installations.
What Is a 63A 4-Pin Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity for industrial equipment with very high current demand.
It features a 3P+E pin configuration with a 6h clock position, ensuring correct phase alignment, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: High-current three-phase industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1141 |
| Product Type | Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 63A 4-pin IEC 60309 industrial socket is commonly used in:
- Heavy-duty three-phase industrial machinery
- Main and sub power distribution panels
- Construction sites and large workshops
- Generators and transformer connections
- Temporary and fixed high-current industrial installations
FAQ
What is the difference between 4-pin and 5-pin 63A industrial sockets?
A 4-pin socket is used when no neutral conductor is required, while a 5-pin socket includes a neutral for applications involving mixed loads or control circuits.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 4-pin IEC 60309 industrial plugs.
Is IP44 suitable for 63A industrial applications?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is sufficient.
