Product Overview

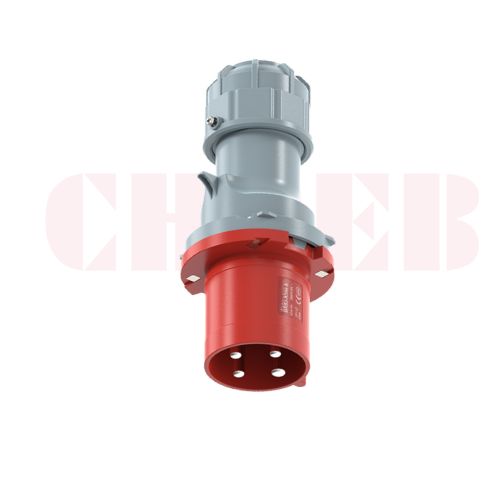

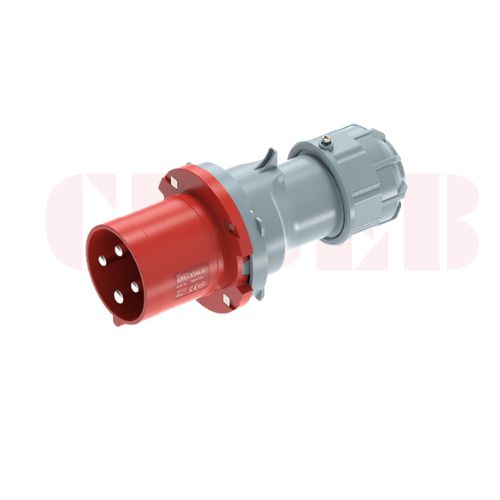

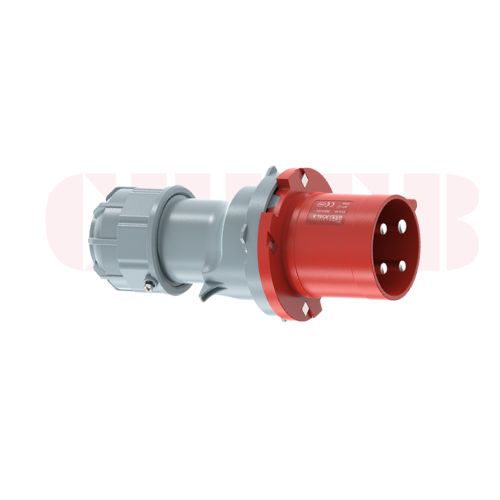

The CHBEB Harmony Series 63A industrial plug is designed for high-current three-phase power connections in industrial environments.
Featuring a 4-pin configuration and a rated voltage of 400V, this plug ensures stable power transmission for heavy-duty equipment and industrial power distribution systems.
With an IP44 protection rating, it provides reliable protection against solid objects and water splashes, making it suitable for indoor and semi-protected industrial applications.
What Is a 63A 4-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin industrial plug is a high-current power connector rated for 400 volts, designed with three phase conductors, a neutral conductor, and a protective earth to safely deliver three-phase electrical power in industrial applications.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P + N + PE)
- Clock position: 6H
- Protection rating: IP44
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-A344-6 |
| Series | Harmony Series |
| Product Type | Industrial Plug |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 3P + N + PE |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Pin Material | Brass H59 |
Applications
This 63A 4-pin industrial plug is designed for three-phase power supply systems operating at 400V in industrial environments.
- Three-phase industrial machinery
- Power distribution systems
- Factory production lines
- Temporary industrial power installations
- Equipment requiring neutral conductor support
