Product Overview

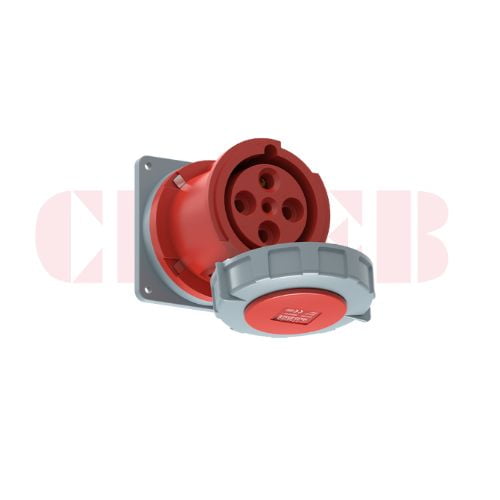

The CHBEB MX Series 63A 4-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards, offering a high-current, waterproof panel-mounted power connection for three-phase industrial systems.
With a rated current of 63A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this socket provides reliable electrical performance in harsh environments exposed to dust, moisture, and water. The red color coding and 6h clock position ensure correct voltage identification and safe operation.
The flanged mounting structure enables secure installation on control panels, power distribution cabinets, and industrial equipment, making it suitable for fixed and outdoor power supply applications.
What Is a 63A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin flanged industrial socket is an IEC 60309 standardized panel-mounted power outlet designed to supply 400V three-phase industrial power without a neutral conductor, featuring high current capacity and waterproof protection.
It is widely used in industrial equipment that does not require a neutral line and demands reliable and safe three-phase power.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B346-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP67 4-pin flanged industrial socket is commonly used in:
- Three-phase industrial machinery without neutral connection
- Outdoor power distribution systems
- Power distribution cabinets and control panels
- Construction sites and heavy-duty equipment
- Harsh industrial environments requiring waterproof protection
FAQ
When should I choose a 4-pin socket instead of a 5-pin?
A 4-pin socket (3P+E) is suitable for three-phase equipment that does not require a neutral conductor.
Is this socket suitable for outdoor installation?
Yes. With IP67 protection, it is fully suitable for outdoor and harsh industrial environments.
Is it compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 4-pin industrial plugs.
Why Choose CHBEB MX Series?
- Complete flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- High-quality H59 brass contacts
- OEM and customization services available
