Product Overview

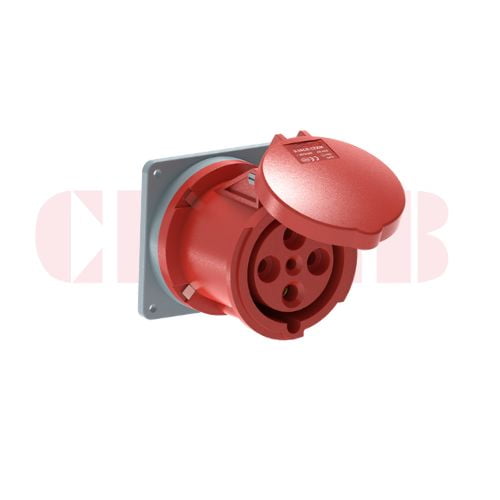

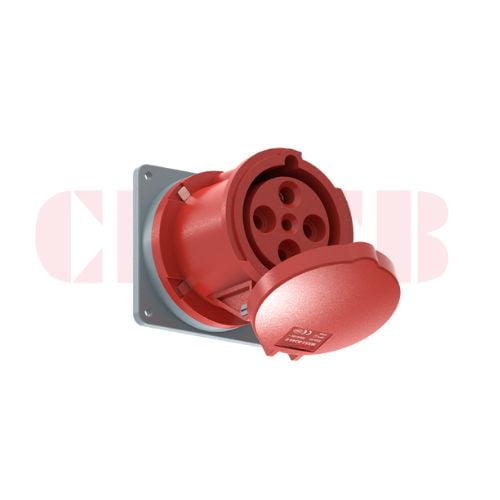

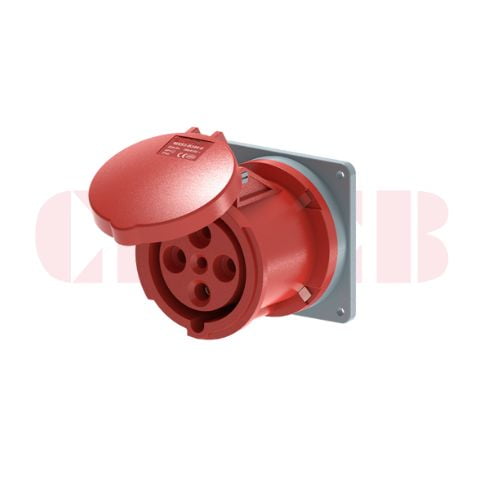

The CHBEB MX Series 63A 4-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for reliable panel-mounted power connections in three-phase industrial systems.
With a rated current of 63A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection, this socket provides stable power transmission and protection against solid objects and water splashes. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
The flanged mounting design allows secure installation on control panels, distribution boards, and industrial equipment, making it ideal for fixed and semi-fixed power applications.
What Is a 63A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet designed for panel mounting, used to safely distribute 400V industrial power with phase and earth connections.
It ensures reliable current transmission, effective grounding, and safe operation in demanding industrial environments.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B344-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP44 4-pin flanged industrial socket is widely used in:
- Three-phase industrial equipment
- Industrial control panels and distribution boards
- Factories and production facilities
- Fixed and semi-fixed industrial power outlets
- Machinery requiring reliable three-phase power
FAQ
What is the difference between 4-pin and 5-pin sockets?
A 4-pin socket provides three-phase power with earth, while a 5-pin socket additionally includes a neutral conductor for mixed-load applications.
Is IP44 suitable for industrial use?
Yes. IP44 protection is suitable for indoor and semi-outdoor industrial environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable panel-mounted structure for industrial installations
- OEM and customization services available
