Product Overview

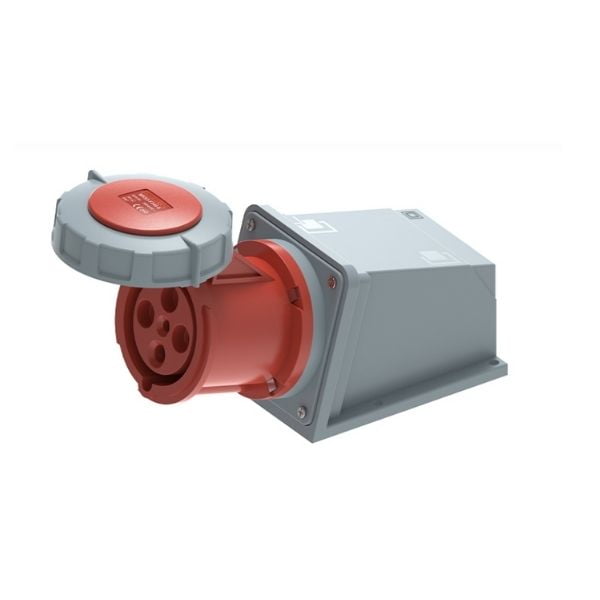

The CHBEB MX Series 63A 4-Pin Enclosed Industrial Socket is manufactured in accordance with IEC 60309 standards and integrated into a rugged protective enclosure, providing safe and reliable power distribution for high-current three-phase industrial systems.
With a rated current of 63A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection rating, this enclosed socket ensures excellent resistance to dust, water, and harsh industrial environments. The red color coding and 6h clock position guarantee correct voltage identification and prevent incorrect connections.
The MX Series enclosure enhances mechanical strength and environmental protection, making this socket ideal for fixed installations, outdoor use, and demanding industrial applications.
What Is a 63A 4-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin enclosed industrial socket is an IEC 60309 standardized three-phase power outlet without neutral, housed in a protective enclosure and designed to safely distribute 400V high-current industrial power.
It provides stable three-phase current transmission, reliable grounding, and enhanced safety for heavy-duty industrial equipment.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F346-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP67 4-pin enclosed industrial socket is widely used in:
- Three-phase industrial equipment without neutral
- Heavy-duty motors and machinery
- Factories and production plants
- Outdoor and harsh industrial environments
- Fixed industrial power distribution points
FAQ
What is the difference between 4-pin and 5-pin sockets?
A 4-pin socket does not include a neutral conductor and is suitable for three-phase equipment that does not require neutral connection.
Why is IP67 important for industrial sockets?
IP67 provides complete dust protection and resistance to temporary water immersion, making it ideal for outdoor and demanding industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Robust enclosure for high-current industrial use
- OEM and customization services available
