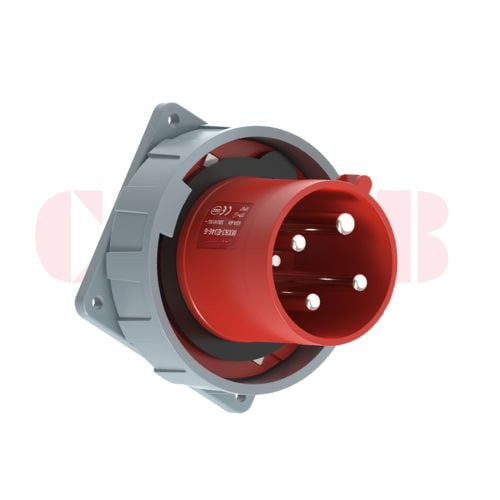

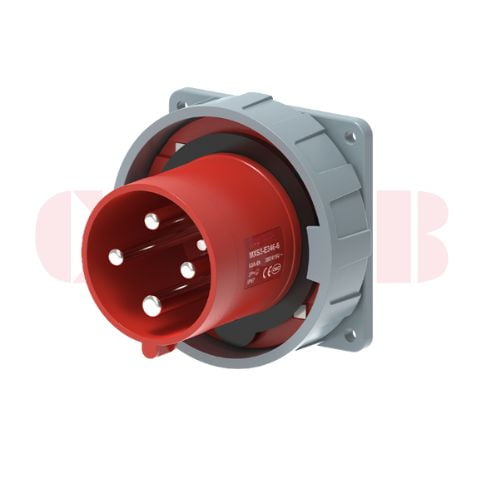

Product Overview
The CHBEB 63A 4-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a safe and reliable power input solution for industrial electrical equipment.
With a rated current of 63A, rated voltage of 400V, 4-pin configuration, and IP67 protection, this appliance inlet delivers stable electrical performance and excellent protection against dust, water, and harsh industrial environments. The red color coding and 6h clock position ensure correct voltage identification and secure connection.
Its panel-mounted design allows permanent installation on machinery, electrical enclosures, and power distribution systems requiring high-current three-phase industrial power connections.
What Is a 63A 4-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to receive 400V three-phase power through a fixed panel-mounted interface.
It is commonly used in industrial applications where waterproof performance, electrical safety, and standardized power input connections are required.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-E346-6 |
| Product Type | Appliance Inlet |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Industrial machinery and equipment
- Three-phase power distribution systems
- Electrical control panels
- Outdoor and harsh industrial environments
FAQ
Is this appliance inlet compatible with standard 63A IEC 60309 plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 63A 400V 4-pin industrial plugs with the same configuration.
Can this inlet be used in outdoor environments?
Yes. With an IP67 protection rating, it is suitable for outdoor and demanding industrial applications.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- High-conductivity H59 brass pins
- Stable quality from China source manufacturer
- OEM & customization services available
