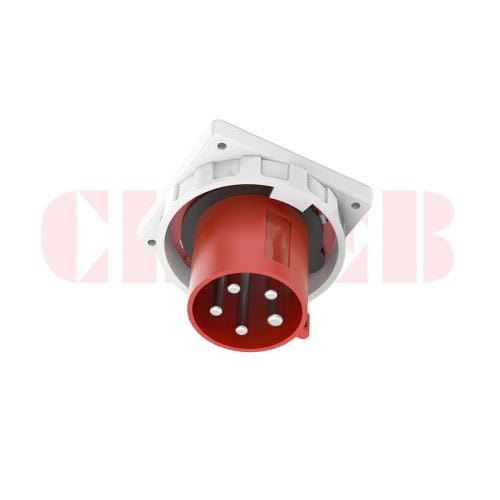

Product Overview
The CHBEB 63A 4-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a secure and reliable fixed power input solution for industrial equipment requiring three-phase power.
With a rated current of 63A, rated voltage of 400V, 4-pin configuration, and IP67 protection, this appliance inlet ensures stable electrical performance and excellent resistance against dust and water. The red color coding and 6h clock position enable correct voltage identification and safe connection.
Its panel-mounted design makes it suitable for permanent installation on electrical equipment, control cabinets, and industrial power distribution systems.
What Is a 63A 4-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 63A 4-pin appliance inlet is an IEC 60309 standardized male connector mounted on equipment, designed to receive 400V three-phase power through a fixed panel installation.
It is widely used in industrial environments where high current capacity, waterproof protection, and standardized power interfaces are required.
Key Specifications
- Rated current: 63A
- Rated voltage: 400V
- Pin configuration: 4-Pin
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-3656 |
| Product Type | Appliance Inlet |
| Rated Current | 63A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass, Nickel Plated |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Three-phase industrial machinery
- Electrical control cabinets
- Power distribution systems
- Outdoor and harsh industrial environments
FAQ
Is this appliance inlet compatible with standard 63A IEC 60309 plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 63A 400V red industrial plugs with the same pin configuration.
Can this inlet be used outdoors?
Yes. IP67 protection allows safe use in outdoor and wet environments, including temporary power distribution and heavy-duty industrial applications.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- H59 brass pins with nickel plating for stable conductivity
- Reliable quality from China source factory
- OEM and customization services supported
