Product Overview

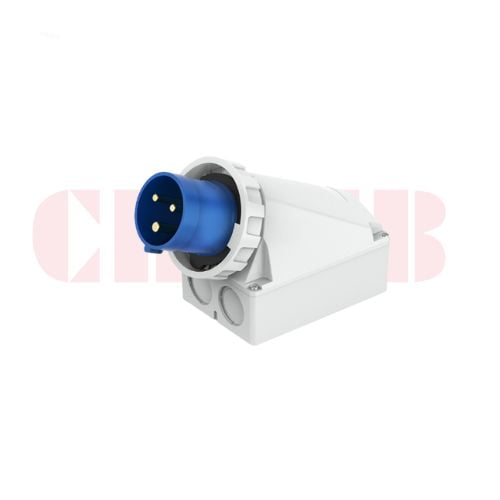

The 63A 3-pin wall mounted industrial plug is manufactured in accordance with IEC 60309 standards, providing a stable and secure fixed power connection for high-current industrial applications.
With a rated current of 63A, rated voltage of 230V, IP67 protection, and a defined 6h clock position, this plug ensures correct phase identification, reliable current transmission, and strong resistance against dust and water ingress.
The wall mounted design allows permanent installation on electrical panels and equipment enclosures, making it suitable for fixed industrial power distribution systems in demanding environments.
What Is a 63A 3-Pin Wall Mounted Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin wall mounted industrial plug is a standardized IEC 60309 power connector designed to deliver 230V high-current industrial power through a fixed installation interface with earth protection.
It is commonly used in applications where a reliable, waterproof, and mechanically secure power inlet is required for continuous industrial operation.
Key Specifications
- Rated Current: 63A
- Poles: 3P (2P + E)
- Rated Voltage: 230V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 6h
- Mounting Type: Wall Mounted / Panel Mounted
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 63A |
| Number of Poles | 3P (2P + E) |
| Rated Voltage | 230V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Mounting Type | Wall Mounted / Panel Mounted |
| Contact Material | Brass |
| Housing Material | High-strength engineering plastic |
Applications
- High-current industrial equipment power supply
- Fixed electrical distribution systems
- Factories and production facilities
- Outdoor industrial power installations
- Heavy-duty machinery and control panels
