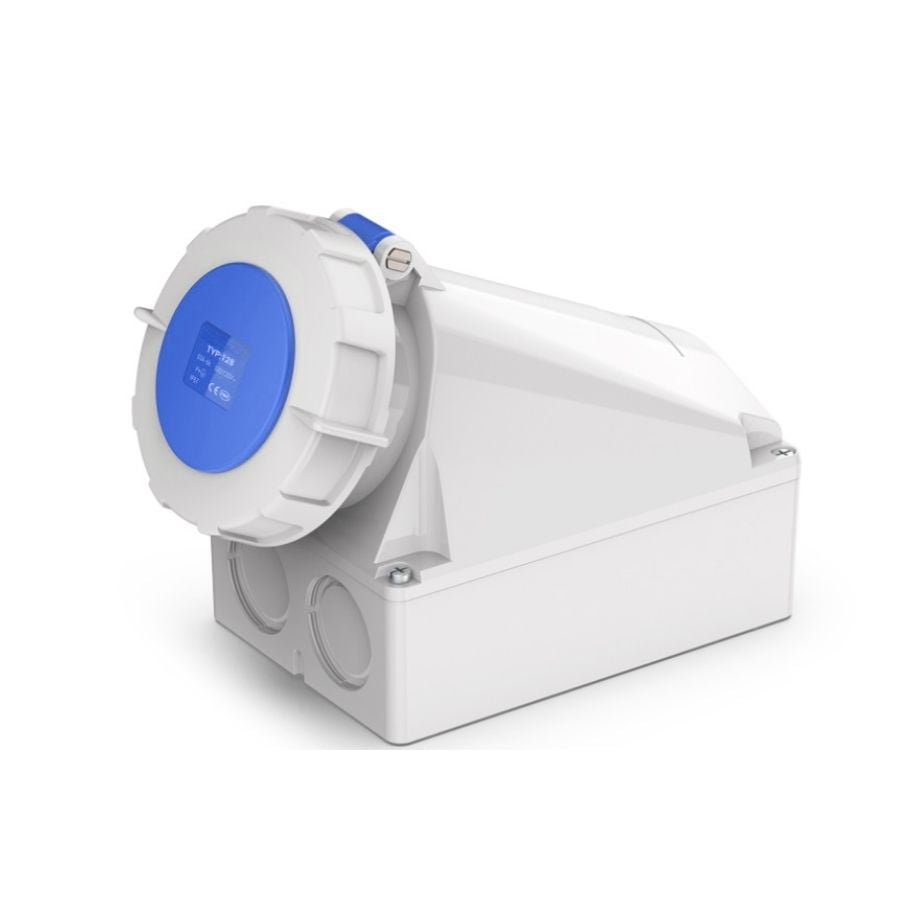

Product Overview
The CHBEB 63A 3-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable high-current single-phase power connections for harsh industrial and outdoor environments.
With a rated current of 63A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this industrial socket offers excellent resistance against dust and water immersion. The blue color coding and 6h clock position clearly identify 230V power systems and help prevent incorrect connections.
It is ideal for applications requiring very high current capacity together with maximum waterproof protection.
What Is a 63A 3-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 230V single-phase electricity while providing enhanced protection against water and dust ingress.
It features a 2P+E pin configuration with an IP67 waterproof rating and a 6h clock position, ensuring safe grounding, reliable operation, and full compatibility with matching IEC 60309 industrial plugs in harsh environments.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Blue (230V)
- Standard: IEC 60309
- Application: Waterproof high-current single-phase power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-128 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB 63A 3-pin IEC 60309 waterproof industrial socket is commonly used in:
- Outdoor industrial power installations
- Construction sites and temporary outdoor power systems
- Ports, docks, and marine environments
- Food processing and wash-down areas
- High-power single-phase equipment in wet or dusty conditions
FAQ
What is the difference between IP44 and IP67 63A sockets?
IP44 sockets protect against solid objects and water splashes, while IP67 sockets provide full dust protection and resistance to temporary water immersion, making them suitable for harsh outdoor and wash-down environments.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 3-pin IEC 60309 industrial plugs.
Is IP67 suitable for continuous outdoor use?
Yes. IP67 protection is specifically designed for outdoor, wet, and high-humidity environments where reliable waterproof performance is required.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and waterproof performance testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
