Product Overview

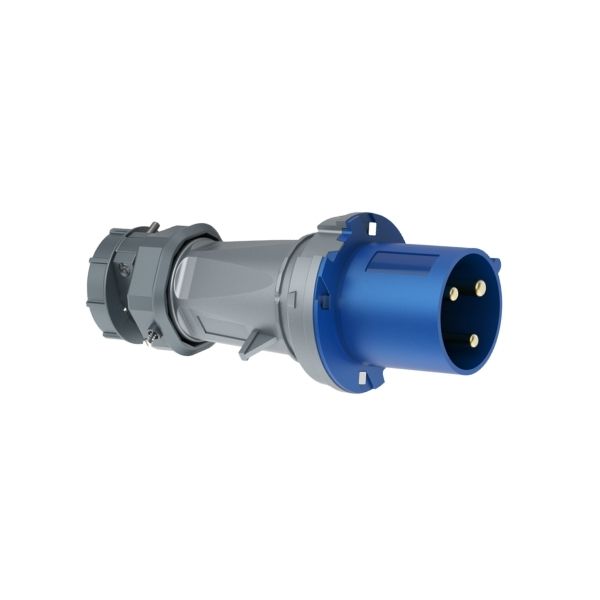

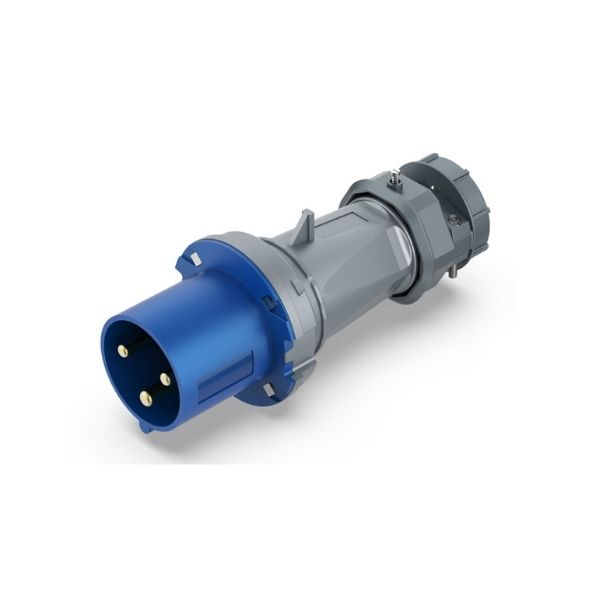

The CHBEB 63A industrial plug is designed for high-current industrial power connections operating at 230V.
With a 3-pin configuration and robust structural design, it ensures reliable electrical performance in demanding industrial environments.
The IP44 protection rating provides resistance against splashing water and solid objects, making it suitable for indoor and semi-outdoor applications.
What Is a 63A Industrial Plug?
A 63A industrial plug is a heavy-duty electrical connector designed to deliver high current power, typically up to 63 amperes, for industrial equipment operating at standard industrial voltages such as 230V.
It is commonly used in applications requiring stable, safe, and repeatable power connections for high-load machinery.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin (3P)
- Clock position: 6H
- Protection rating: IP44
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1227 |
| Product Type | Industrial Plug |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P |
| Clock Position | 6H |
| Protection Rating | IP44 |
| Pin Material | H59 Brass |
| Housing | Reinforced Engineering Plastic |
Applications
This CHBEB 63A industrial plug is designed for high-current industrial applications where stable 230V power delivery is required.
- Industrial machinery and equipment
- Temporary and mobile power distribution systems
- Workshops and factory power connections
- Construction and maintenance sites
- Industrial environments requiring IP44-rated connectors
