Product Overview

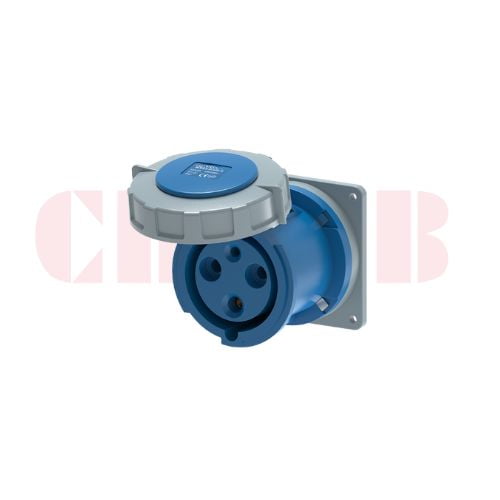

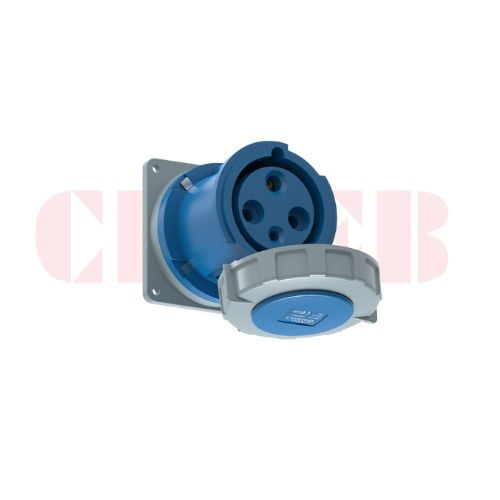

The CHBEB MX Series 63A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards, providing a robust and waterproof panel-mounted power solution for high-current single-phase and three-wire industrial applications.
With a rated current of 63A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection, this socket ensures reliable power transmission even in harsh environments exposed to dust, moisture, and water jets. The blue color coding and 6h clock position ensure correct voltage identification and safe connections.
The flanged mounting structure enables secure installation on control panels, power distribution boxes, and industrial equipment, making it suitable for fixed and outdoor power connections.
What Is a 63A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin flanged industrial socket is an IEC 60309 standardized panel-mounted power outlet designed to supply 230V high-current industrial power with reliable grounding and waterproof protection.
It is commonly used in demanding industrial and outdoor environments where safety, durability, and environmental sealing are critical.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B336-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP67 3-pin flanged industrial socket is widely used in:
- Outdoor industrial power distribution systems
- Construction sites and temporary power installations
- High-current single-phase industrial equipment
- Harsh environments requiring waterproof protection
- Fixed panel-mounted power outlets
FAQ
What is the advantage of IP67 protection?
IP67 provides full protection against dust and temporary immersion in water, making it ideal for outdoor and harsh industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 3-pin IEC industrial plugs.
Can this socket be used outdoors?
Yes. With IP67 protection, it is suitable for outdoor installations exposed to rain, dust, and moisture.
Why Choose CHBEB MX Series?
- Full MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable design for harsh industrial environments
- OEM and customization services available
