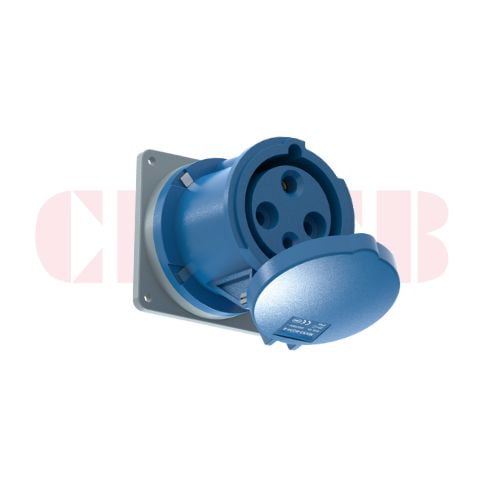

Product Overview
The CHBEB MX Series 63A 3-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and engineered for stable panel-mounted power connections in industrial environments.
With a rated current of 63A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP44 protection, this socket provides reliable single-phase or low-voltage three-phase power distribution with protection against solid objects and water splashes. The blue color coding and 6h clock position ensure correct voltage identification and safe connections.
The flanged mounting structure allows secure installation on control panels, distribution boxes, and industrial equipment, making it suitable for fixed and semi-fixed power applications.
What Is a 63A 3-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin flanged industrial socket is an IEC 60309 standardized power outlet designed for panel mounting, used to safely distribute 230V industrial power with phase and earth connections.
It ensures reliable current transmission, stable grounding, and safe operation in demanding industrial environments.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B334-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP44 3-pin flanged industrial socket is widely used in:
- High-current single-phase industrial equipment
- Temporary and fixed power distribution systems
- Industrial machinery and tools
- Factories, workshops, and service panels
- Panel-mounted industrial power outlets
FAQ
What applications require a 3-pin socket?
A 3-pin socket is suitable for applications that require phase and earth connections without a neutral conductor, such as single-phase industrial equipment.
Is IP44 suitable for industrial use?
IP44 protection is ideal for indoor and semi-outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 63A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable panel-mounted structure for industrial installations
- OEM and customization services available
