Product Overview

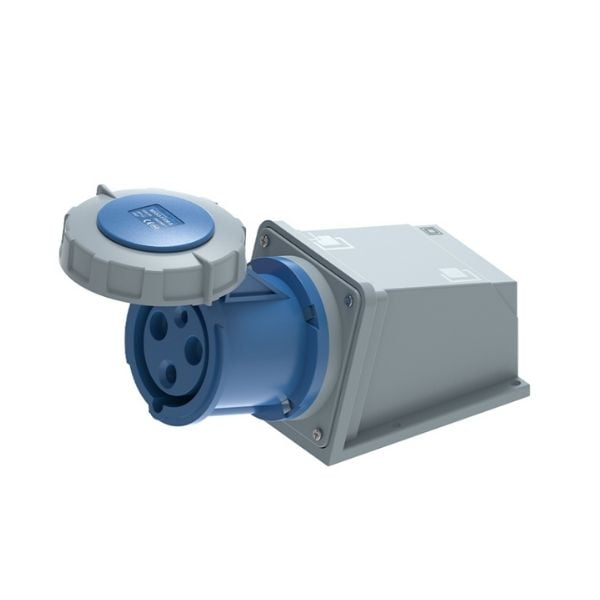

The CHBEB MX Series 63A 3-Pin Enclosed Industrial Socket is designed in full compliance with IEC 60309 standards and integrated into a heavy-duty protective enclosure, providing safe and reliable power distribution for high-current single-phase and three-phase industrial applications.
With a rated current of 63A, rated voltage of 230V, 3-pin (2P+E) configuration, and IP67 protection rating, this enclosed socket delivers excellent resistance against dust, water ingress, and harsh industrial conditions. The blue color coding and 6h clock position ensure correct voltage identification and prevent misconnection.
The MX Series enclosure offers enhanced mechanical strength and environmental protection, making this socket ideal for fixed installations and demanding industrial environments.
What Is a 63A 3-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin enclosed industrial socket is an IEC 60309 standardized high-current power outlet designed for 230V applications, featuring a protective enclosure to ensure safe and reliable power distribution in industrial environments.
It provides stable current transmission, reliable grounding, and enhanced protection against environmental factors such as dust and water.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin (2P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F336-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P (2P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 63A IP67 3-pin enclosed industrial socket is widely used in:
- High-current single-phase industrial equipment
- Factories and production workshops
- Industrial power distribution systems
- Outdoor and harsh environment installations
- Fixed and semi-fixed industrial power points
FAQ
What applications are suitable for a 3-pin 63A socket?
A 3-pin (2P+E) socket is suitable for high-current single-phase equipment requiring reliable grounding and stable power supply.
Why choose IP67 protection?
IP67 offers complete protection against dust and temporary water immersion, making it ideal for outdoor and harsh industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket is fully compliant with IEC 60309 standards and compatible with corresponding 63A 3-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Robust enclosure for high-current industrial applications
- OEM and customization services available
