Product Overview

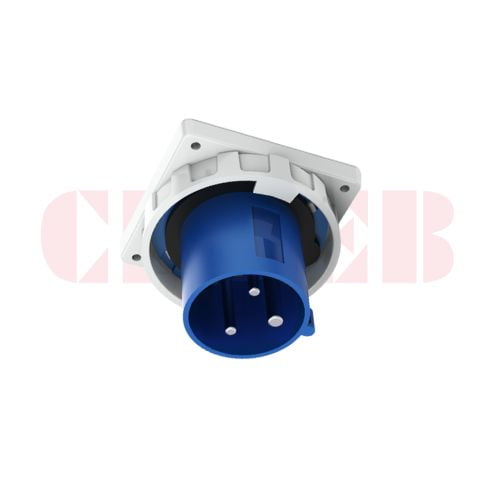

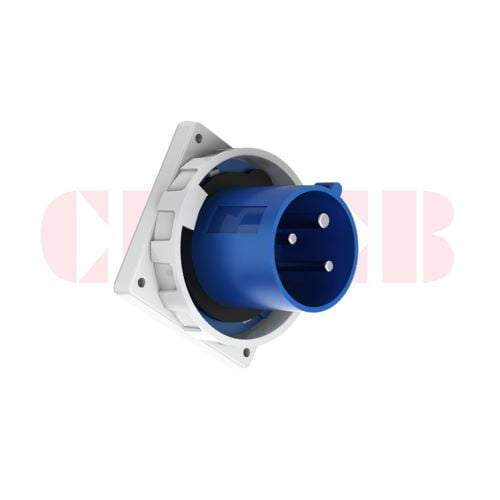

The CHBEB 63A 3-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a secure and reliable fixed power input solution for high-current industrial equipment.
With a rated current of 63A, rated voltage of 230V, 3-pin configuration, and IP67 protection, this appliance inlet delivers excellent electrical performance and protection against dust and water. The blue color coding and 6h clock position ensure correct voltage identification and prevent mismatching.
Its panel-mounted design allows permanent installation on electrical equipment, control cabinets, and industrial power distribution systems.
What Is a 63A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on equipment, designed to receive 230V single-phase power through a fixed panel installation.
It is widely used in industrial environments requiring high-current, waterproof, and standardized power connections.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin
- Protection rating: IP67
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-836 |
| Product Type | Appliance Inlet |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass, Nickel Plated |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- High-current single-phase industrial equipment
- Electrical control panels
- Industrial machinery and tools
- Outdoor and harsh working environments
FAQ
Is this appliance inlet compatible with standard 63A IEC 60309 plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 63A 230V blue industrial plugs with the same pin configuration.
Can this IP67 inlet be used outdoors?
Yes. IP67 protection provides excellent resistance against dust and water immersion, making it suitable for outdoor and harsh industrial environments.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- H59 brass pins with nickel plating for stable conductivity
- Reliable quality from China source factory
- OEM and customization services supported
