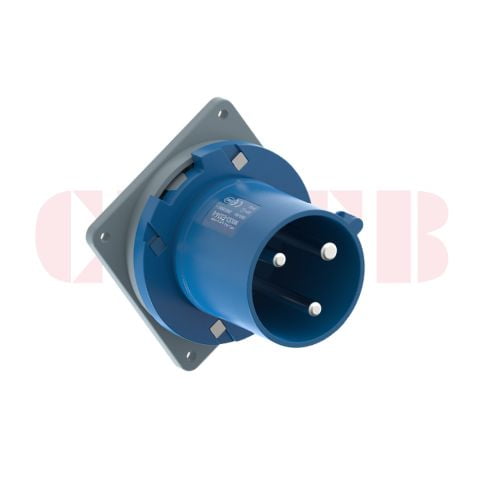

Product Overview
The CHBEB 63A 3-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a safe and standardized power input solution for industrial and commercial electrical equipment.
With a rated current of 63A, rated voltage of 230V, 3-pin configuration, and IP44 protection, this appliance inlet delivers stable electrical performance and reliable protection against splashing water and solid objects. The blue color coding and 6h clock position ensure correct voltage identification and safe mating.
Its panel-mounted design allows permanent installation on equipment, control panels, and power distribution systems requiring single-phase high-current connections.
What Is a 63A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on electrical equipment, designed to receive 230V single-phase power through a fixed panel interface.
It is widely used in industrial applications where reliable, standardized, and safe power input connections are required.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-E334-6 |
| Product Type | Appliance Inlet |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Industrial machinery and equipment
- Electrical control panels
- Power distribution units
- Factories, workshops, and industrial installations
FAQ
Is this appliance inlet compatible with standard 63A IEC 60309 plugs?
Yes. This appliance inlet is fully compliant with IEC 60309 standards and compatible with all standard 63A 230V 3-pin industrial plugs with the same configuration.
Is IP44 protection sufficient for industrial environments?
Yes. IP44 protection is suitable for indoor and semi-protected industrial environments where resistance to splashing water and solid objects is required.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- High-conductivity H59 brass pins
- Stable quality from China source manufacturer
- OEM & customization services available
