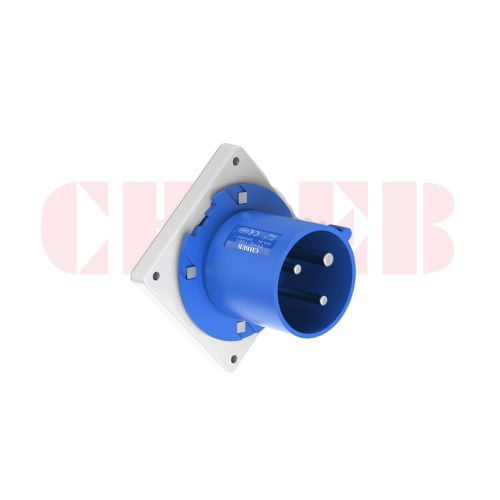

Product Overview
The CHBEB 63A 3-Pin Appliance Inlet is manufactured in accordance with IEC 60309 standards, providing a reliable fixed power input solution for high-current industrial equipment.
With a rated current of 63A, rated voltage of 230V, 3-pin configuration, and IP44 protection, this appliance inlet ensures safe and stable power connections for indoor and light outdoor industrial environments. The blue color coding and 6h clock position enable correct voltage identification and prevent incorrect connections.
Its panel-mounted design allows permanent installation on electrical equipment, control cabinets, and power distribution units.
What Is a 63A 3-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 63A 3-pin appliance inlet is an IEC 60309 standardized male connector mounted on equipment, designed to receive 230V single-phase or industrial power through a fixed panel installation.
It is widely used in high-current industrial applications requiring stable and standardized power input.
Key Specifications
- Rated current: 63A
- Rated voltage: 230V
- Pin configuration: 3-Pin
- Protection rating: IP44
- Clock position: 6h
- Color code: Blue (230V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1981 |
| Product Type | Appliance Inlet |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Poles | 3P |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Blue |
| Pin Material | H59 Brass, Nickel Plated |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- High-current industrial machinery
- Electrical control panels
- Power distribution equipment
- Workshops and factory installations
FAQ
What is the difference between IP44 and IP67 appliance inlets?
IP44 appliance inlets protect against solid objects and water splashes, making them suitable for indoor and light outdoor applications. IP67 versions are designed for harsher environments requiring full dust protection and resistance to temporary water immersion.
Is this inlet compatible with standard 63A IEC 60309 plugs?
Yes. This appliance inlet fully complies with IEC 60309 standards and is compatible with all standard 63A 230V blue industrial plugs with the same pin configuration.
Why Choose CHBEB?
- Full IEC 60309 appliance inlet range from 16A to 125A
- IP44 and IP67 protection options available
- High-quality H59 brass pins with nickel plating
- Stable production from China source factory
- OEM and customization services supported
