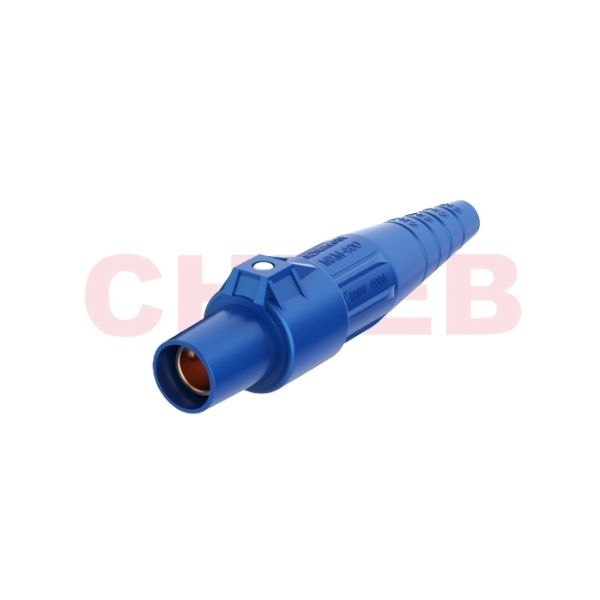

Product Overview
The MXM400 American standard single pole power connector is designed for high-current power transmission applications, providing a safe, stable, and efficient solution for single-core electrical connections.
With a rated current of 400A and rated voltage of 600V, this connector adopts a single pole structure and quick plug-in design, enabling reliable power connection for demanding industrial and power distribution environments.
Its robust insulated housing and optimized internal contact structure ensure stable electrical performance, low contact resistance, and secure connection during frequent plug-in and unplug operations.
What Is a 400A Single Pole Power Connector?
⭐ Google Featured Snippet Core Definition
A 400A single pole power connector is a high-current electrical connector designed for single-core power transmission, commonly used in power distribution systems, industrial equipment, and temporary or mobile power applications.
It allows fast, safe, and reliable connection of high-current cables while maintaining stable electrical performance under heavy load conditions.
Key Specifications
- Rated current: 400A
- Rated voltage: 600V
- Connector type: Single pole power connector
- Structure: Single core
- Installation type: Cable mounted
- Color options: Red / Yellow / Blue / Green / Black
- Standard: American standard
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXM400 |
| Product Type | Single Pole Power Connector |
| Rated Current | 400A |
| Rated Voltage | 600V |
| Pole Configuration | Single Pole |
| Installation Type | Cable Mounted |
| Contact Material | Copper |
| Housing Material | High-strength insulated material |
| Color Options | Red / Yellow / Blue / Green / Black |
| Standard | American standard |
Applications
- Power distribution systems
- Industrial electrical equipment
- Stage lighting and audio power connections
- Temporary and mobile power supply systems
- High-current cable connections
