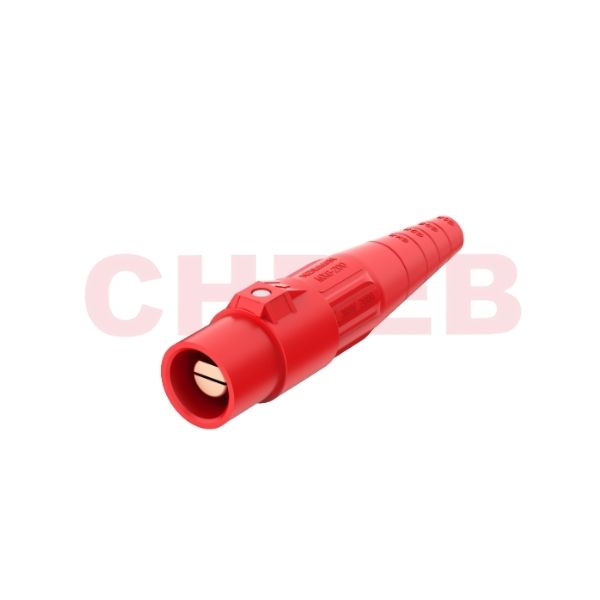

Product Overview
The MXG400 American standard single pole power connector is designed for high-current power transmission applications, providing a safe and reliable cable-mounted connection solution.
With a rated current of 400A and rated voltage of 600V, this connector features a single pole structure and quick plug-in design, allowing fast and secure power connection for industrial and power distribution systems.
Its robust insulated housing and copper contact ensure stable electrical performance, low contact resistance, and reliable operation under heavy current conditions. The cable-mounted design makes it suitable for mobile power connections and frequent plug-in applications.
What Is a 400A Single Pole Power Connector?
⭐ Google Featured Snippet Core Definition
A 400A single pole power connector is a high-current electrical connector designed for single-core power transmission, commonly used in industrial power systems and temporary or mobile power applications.
It enables fast, safe, and reliable connection of high-current cables while maintaining stable electrical performance under demanding load conditions.
Key Specifications
- Rated current: 400A
- Rated voltage: 600V
- Connector type: Single pole power connector
- Pole configuration: Single pole
- Installation type: Cable mounted
- Color options: Red / Yellow / Blue / Green / Black
- Standard: American standard
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXG400 |
| Product Type | Single Pole Power Connector |
| Rated Current | 400A |
| Rated Voltage | 600V |
| Pole Configuration | Single Pole |
| Installation Type | Cable Mounted |
| Contact Material | Copper |
| Housing Material | PA6 (Nylon 6) |
| Color Options | Red / Yellow / Blue / Green / Black |
| Standard | American standard |
Applications
- Power distribution systems
- Industrial electrical equipment
- Stage lighting and audio power distribution
- Temporary and mobile power supply systems
- High-current cable connections
