Product Overview

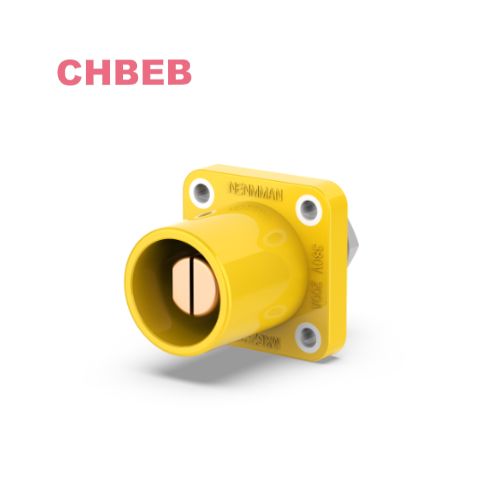

The MXGZ400 American standard panel mount single pole power connector is designed for high-current power distribution applications, providing a stable and secure fixed panel connection solution.
With a rated current of 400A and rated voltage of 600V, this connector features a single pole structure and panel-mounted design, enabling reliable power transmission between cables and electrical equipment.
Its high-strength insulated housing and copper contact ensure stable electrical performance, low contact resistance, and safe operation under heavy current conditions. The fixed panel installation makes it suitable for power distribution cabinets and industrial electrical systems.
What Is a 400A Panel Mount Single Pole Power Connector?
⭐ Google Featured Snippet Core Definition
A 400A panel mount single pole power connector is a high-current electrical connector designed to be fixed onto panels or enclosures, providing a secure interface for single-core power transmission.
It is widely used in power distribution systems and industrial equipment where stable, high-current panel connections are required.
Key Specifications
- Rated current: 400A
- Rated voltage: 600V
- Connector type: Panel mount single pole connector
- Pole configuration: Single pole
- Installation type: Panel mounted / fixed installation
- Color options: Red / Yellow / Blue / Green / Black
- Standard: American standard
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXGZ400 |
| Product Type | Panel Mount Single Pole Power Connector |
| Rated Current | 400A |
| Rated Voltage | 600V |
| Pole Configuration | Single Pole |
| Installation Type | Panel Mounted |
| Contact Material | Copper |
| Housing Material | PA6 (Nylon 6) |
| Color Options | Red / Yellow / Blue / Green / Black |
| Standard | American standard |
Applications
- Power distribution cabinets
- Industrial electrical equipment
- Energy storage and power systems
- Stage lighting and audio power distribution
- High-current panel power connections
