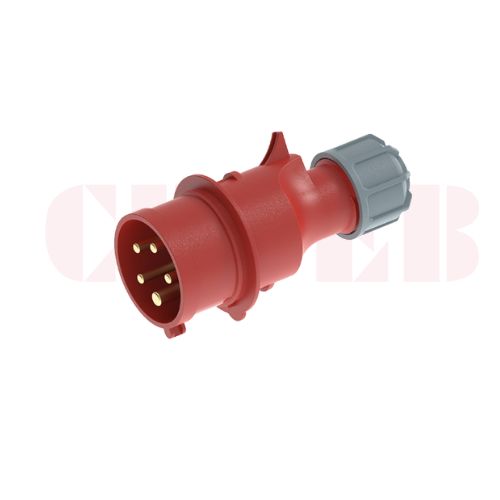

The Harmony Series 32A/5P-MXS3-A254-6 IP44 400V Industrial Plug is engineered according to IEC 60309 standards and is designed for 400V three-phase five-wire systems (L1, L2, L3, N, PE).
Its red voltage coding clearly indicates compatibility with 400V industrial equipment, preventing mismating with other voltage levels.
The A254-6 model features a reinforced housing and a secure cable gland, delivering IP44 splash-proof protection for workshops, machinery, and general industrial environments.
The flame-retardant PA66 housing ensures durability, while nickel-plated copper pins provide excellent conductivity and corrosion resistance.
Key Features
Rated Current: 32A
Rated Voltage: 400V (Red-coded)
Poles: 5P (L1, L2, L3, N, PE)
IEC 60309 compliant dimensions and design
IP44 splash-proof protection
Flame-retardant PA66 housing
Nickel-plated copper pins for stable conductivity
Strong tensile cable gland to prevent pull-out
Ergonomic Harmony grip design
Typical Applications
Three-phase + neutral industrial equipment
CNC machinery and automation systems
400V HVAC installations
Heating and industrial electric boilers
Temporary power distribution on construction sites
Production line power interfaces
Industrial rental and mobile equipment
