Product Overview

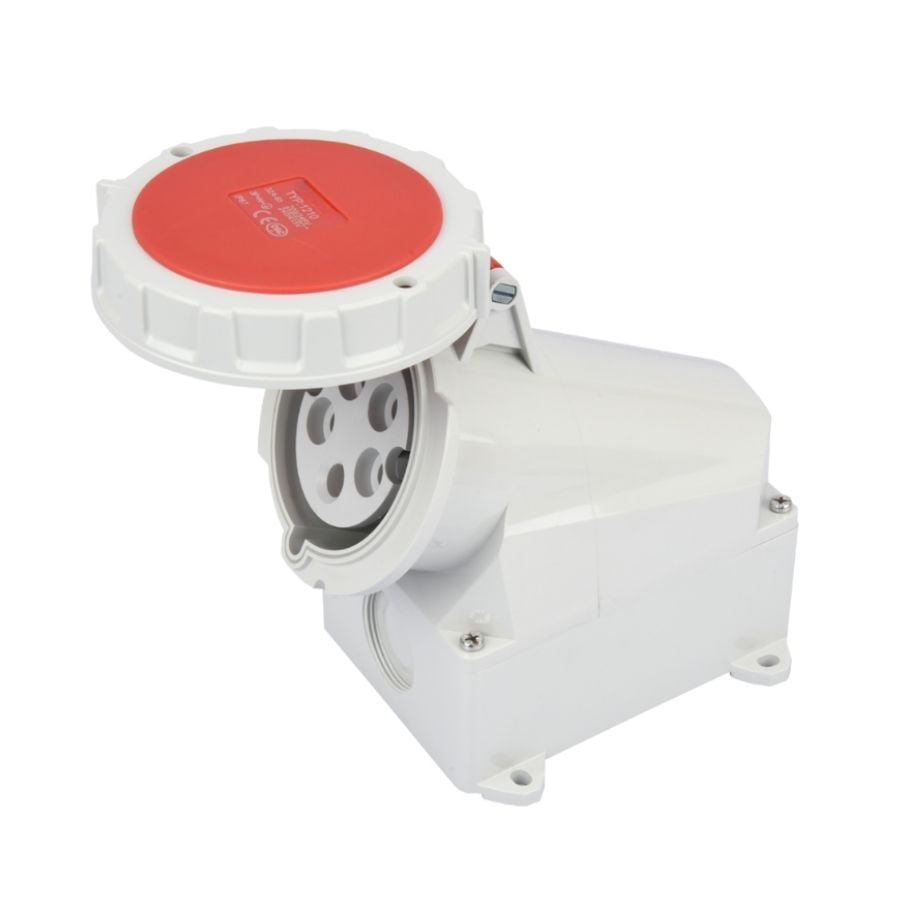

The CHBEB 32A 5-Pin Waterproof Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable three-phase power connections for harsh industrial and outdoor environments.
With a rated current of 32A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this industrial socket provides excellent resistance against dust, water immersion, and demanding environmental conditions. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is ideal for applications where high current capacity, neutral connection, and maximum waterproof performance are required.
What Is a 32A 5-Pin Waterproof Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 5-pin waterproof industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity with a neutral conductor while providing enhanced protection against water and dust ingress.
It features a 3P+N+E pin configuration with an IP67 waterproof rating and a 6h clock position, ensuring correct phase alignment, neutral connection, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs in harsh environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67 (Waterproof)
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Waterproof three-phase industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1210 |
| Product Type | Waterproof Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 5-pin IEC 60309 waterproof industrial socket is commonly used in:
- Outdoor industrial installations
- Ports, docks, and marine environments
- Food processing and wash-down areas
- Construction sites and temporary outdoor power systems
- Three-phase machinery requiring neutral and waterproof connections
FAQ
When should I choose a 5-pin waterproof industrial socket?
A 5-pin waterproof industrial socket is required when the electrical system needs a neutral conductor in addition to three phases and earth, especially in outdoor or wet environments.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 5-pin IEC 60309 industrial plugs.
Is IP67 suitable for continuous outdoor use?
Yes. IP67 protection provides full dust protection and resistance to temporary water immersion, making it ideal for harsh outdoor and wash-down environments.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and waterproof performance testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
