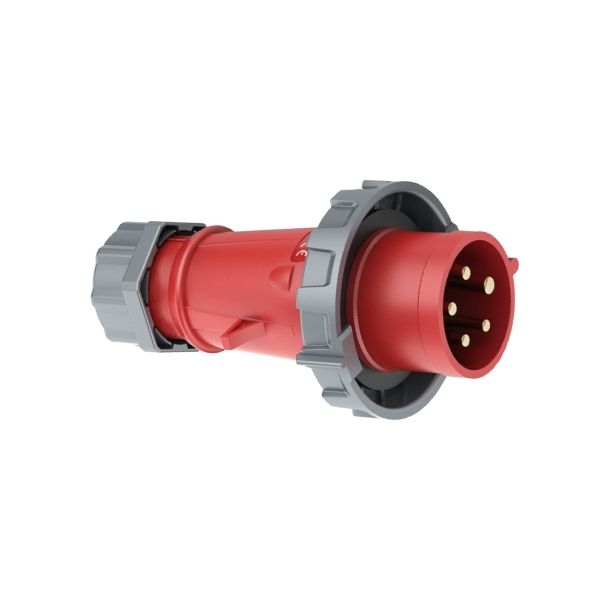

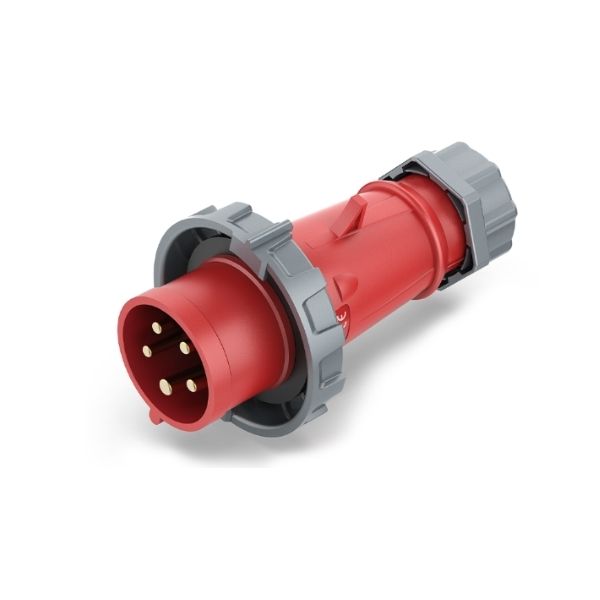

Product Overview
The CHBEB 32A 5-Pin Industrial Plug is manufactured in accordance with IEC 60309 standards, providing a safe and reliable power connection for industrial electrical systems.
Rated at 32A and 400V, this plug is designed for three-phase power applications requiring a neutral connection, ensuring stable current transmission and standardized compatibility.
With an IP67 protection rating, it is suitable for harsh environments where protection against dust and temporary water immersion is required.
What Is a 32A 400V 5-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 400V 5-pin industrial plug is an IEC 60309 standardized connector designed for three-phase electrical systems with neutral, providing safe and reliable power distribution in industrial environments.
It is commonly used where higher voltage, higher current, and standardized multi-pole connections are required.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (5P)
- Protection rating: IP67
- Clock position: 6H
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-300 |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P |
| Protection Rating | IP67 |
| Clock Position | 6H |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 5-pin 400V industrial plug is suitable for industrial applications requiring three-phase power with neutral and high environmental protection.
- Industrial machinery with three-phase + neutral power systems
- Factory and workshop power distribution
- Construction sites and temporary power supply
- Outdoor industrial installations
- Harsh environments requiring IP67 protection
