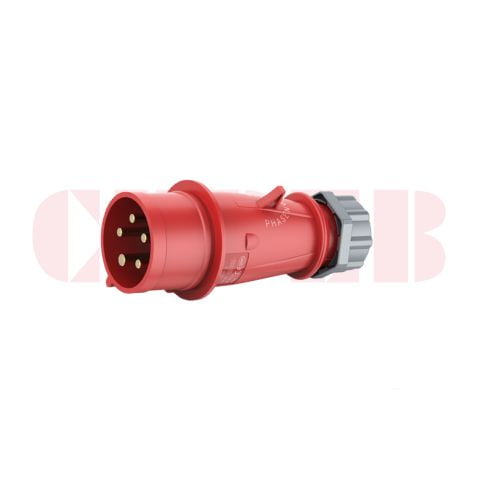

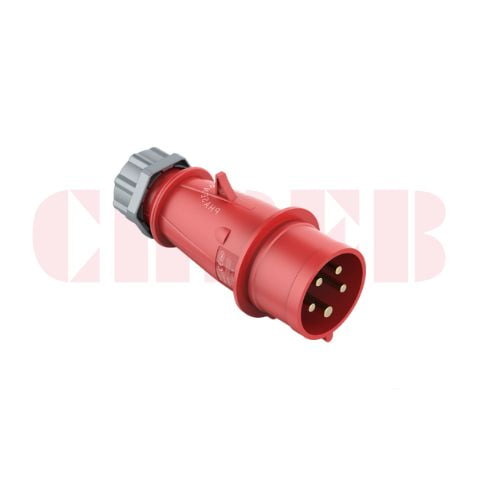

Product Overview
The CHBEB 32A 5-Pin Industrial Plug is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial power systems.
With a rated current of 32A, rated voltage of 400V, IP44 protection, and a defined 6h clock position, this plug ensures correct phase alignment, stable current transmission, and protection against splashing water in demanding environments.
It is designed for three-phase power applications and is commonly used in industrial machinery, power distribution systems, and fixed electrical installations.
What Is a 32A 5-Pin Industrial Plug?
A 32A 5-pin industrial plug is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity for industrial and commercial equipment.
It features a 3P+N+E pin configuration with a 6h clock position, ensuring reliable grounding, correct connection, and safe operation in three-phase power systems.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-4 |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 5-pin IEC 60309 industrial plug is widely used in three-phase power systems where stable current capacity and reliable connections are required, including:
- Three-phase industrial machinery and equipment
- Power distribution boards and fixed installations
- Workshops and factory electrical systems
- Industrial extension cables with fixed wiring
- Commercial and light industrial power supply systems
