Product Overview

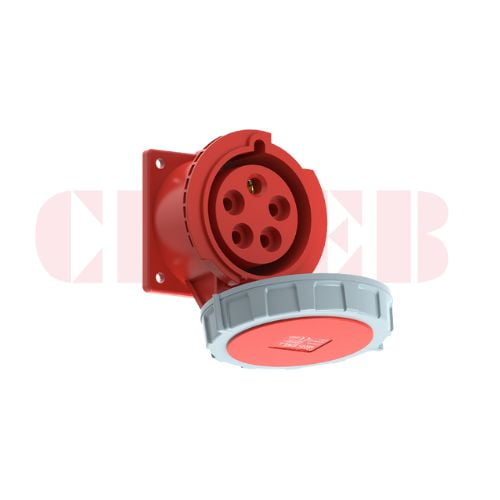

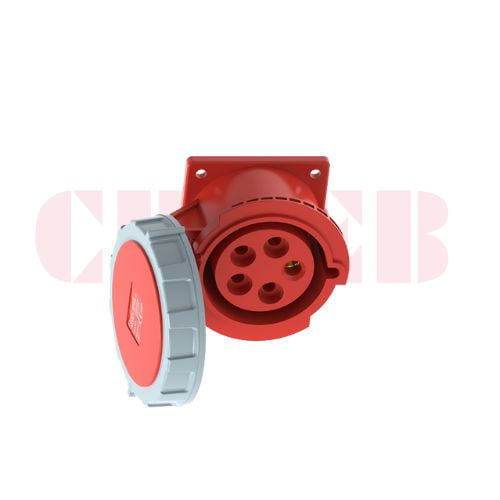

The CHBEB MX Series 32A 5-Pin Flanged Industrial Socket is manufactured in accordance with IEC 60309 standards and designed for secure panel-mounted power connections in harsh industrial environments.
With a rated current of 32A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this socket ensures safe and stable three-phase power distribution, even in dusty or wet conditions. The red color coding and 6h clock position guarantee correct voltage identification and prevent mismatched connections.
The flanged mounting structure provides firm installation on control panels, distribution boxes, and industrial equipment, making it ideal for fixed and semi-fixed industrial applications.
What Is a 32A 5-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 5-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, designed for panel mounting and used to safely distribute 400V industrial power.
It ensures balanced phase distribution, neutral continuity, reliable grounding, and high-level environmental protection in demanding industrial environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B256-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP67 5-pin flanged industrial socket is widely used in:
- Three-phase equipment requiring neutral connection
- Industrial machines with mixed loads
- Outdoor power distribution systems
- Control panels and electrical enclosures
- Factories and construction sites with harsh environments
FAQ
Why choose a 5-pin socket instead of 4-pin?
A 5-pin socket includes a neutral conductor, making it suitable for equipment that requires both three-phase and single-phase loads.
Is IP67 necessary for industrial use?
IP67 protection provides full dust resistance and protection against temporary water immersion, making it ideal for outdoor and harsh industrial environments.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 5-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable structure for fixed industrial installations
- OEM and customization services available
