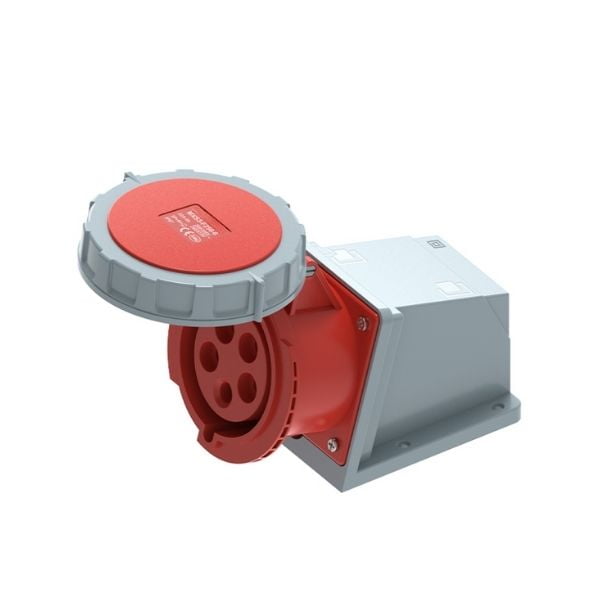

Product Overview
The CHBEB MX Series 32A 5-Pin Enclosed Industrial Socket is manufactured in full compliance with IEC 60309 standards and integrated into a sealed protective enclosure, providing safe and reliable three-phase power connections with neutral for demanding industrial environments.
With a rated current of 32A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP67 protection, this enclosed industrial socket offers excellent resistance to dust, water ingress, and temporary immersion. The red color coding and 6h clock position clearly identify 400V power systems and prevent incorrect connections.
The MX Series IP67 enclosure is specifically designed for outdoor installations, heavy-duty equipment, and industrial power distribution systems where maximum environmental protection is required.
What Is a 32A 5-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 5-pin enclosed industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, housed in a waterproof enclosure to safely distribute 400V industrial power in harsh environments.
It supports mixed three-phase and single-phase loads while ensuring electrical safety, mechanical protection, and environmental sealing.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F256-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |

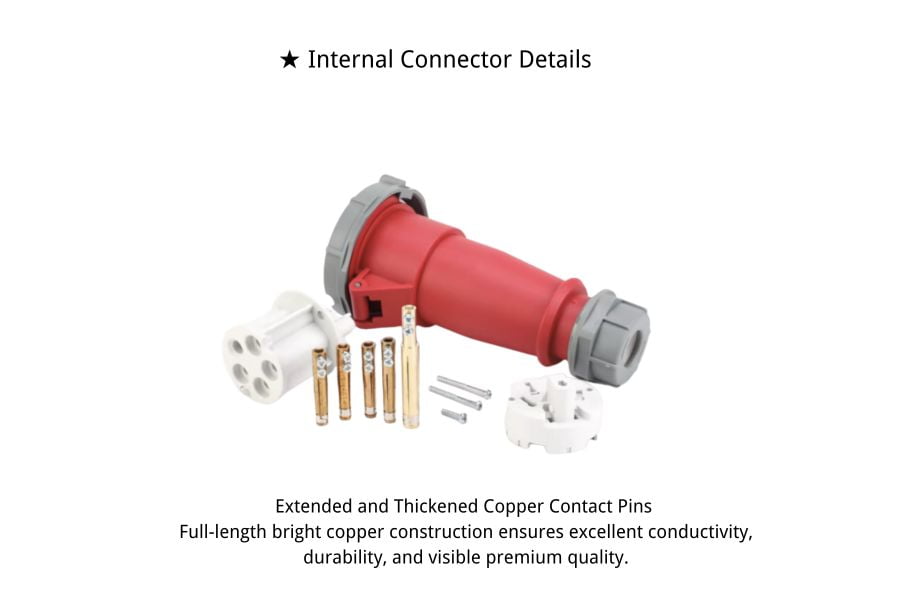

| Pin Material | H59 Brass |
| Housing Material | Industrial-grade waterproof insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP67 5-pin enclosed industrial socket is widely used in:
- Outdoor industrial machinery
- Construction sites and temporary power systems
- Factories with harsh operating conditions
- Industrial power distribution boxes
- Equipment requiring three-phase and neutral connections
FAQ
Why choose a 5-pin (3P+N+E) industrial socket?
A 5-pin configuration provides a neutral conductor, allowing equipment to use both three-phase and single-phase loads from the same power source.
What does IP67 protection guarantee?
IP67 protection ensures complete dust resistance and protection against temporary water immersion, making it ideal for outdoor and harsh industrial environments.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with all matching 32A 5-pin IEC 60309 industrial plugs.
Why Choose CHBEB MX Series?

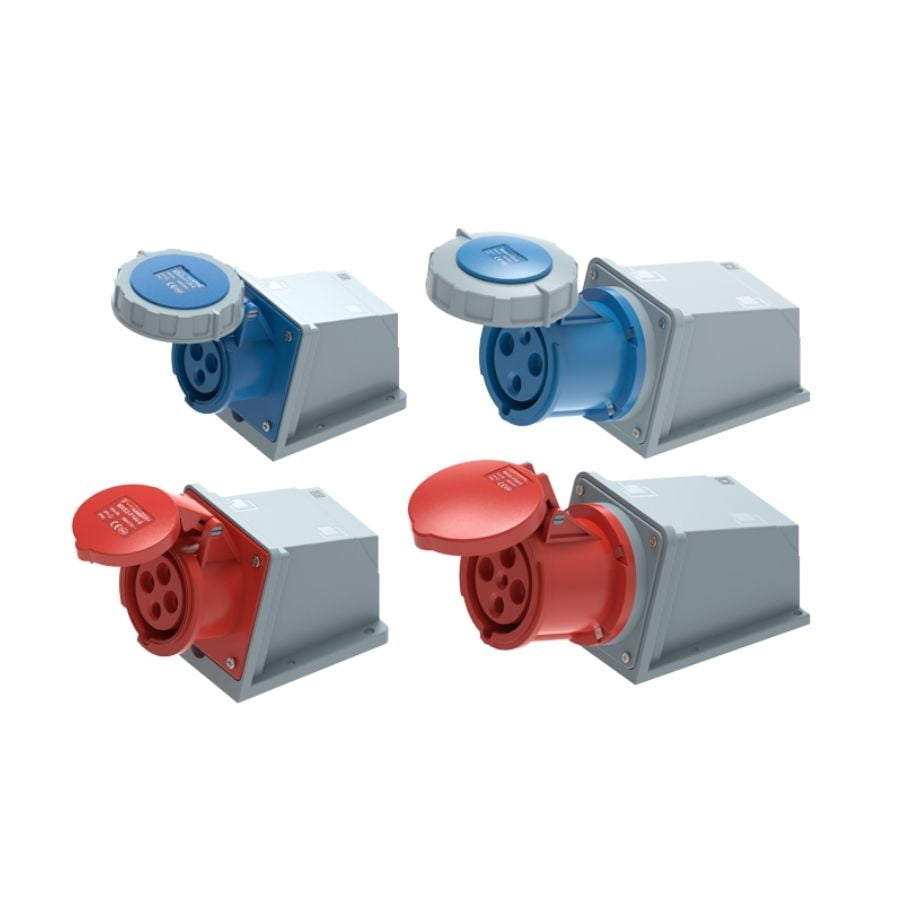

- Complete MX enclosed socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Durable waterproof enclosure for harsh environments
- OEM and customization services available
