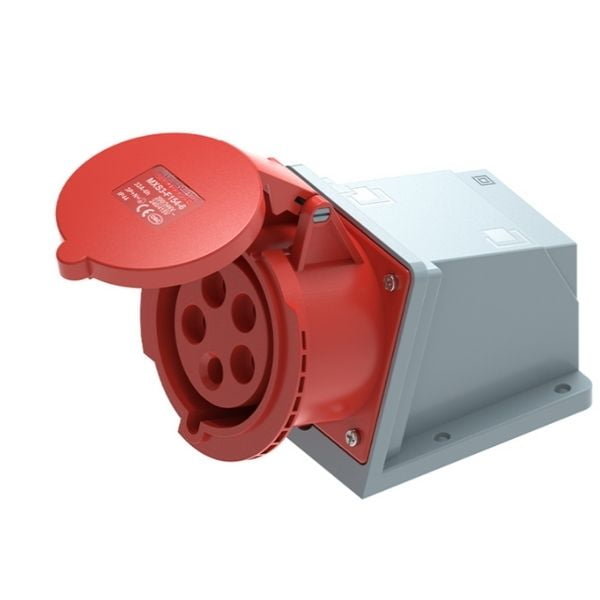

Product Overview
The CHBEB MX Series 32A 5-Pin Enclosed Industrial Socket is designed in full compliance with IEC 60309 standards, integrating a robust protective enclosure to deliver safe and reliable three-phase power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 400V, 5-pin (3P+N+E) configuration, and IP44 protection, this enclosed industrial socket effectively resists dust and water splashes. The red color coding and 6h clock position clearly identify 400V power systems and prevent incorrect connections.
The MX Series enclosure design makes this socket ideal for fixed installations, equipment mounting, and industrial power distribution environments where additional mechanical protection is required.
What Is a 32A 5-Pin Enclosed Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 5-pin enclosed industrial socket is an IEC 60309 standardized three-phase power outlet with neutral and earth, housed in a protective enclosure to safely distribute 400V industrial power in demanding environments.
It combines electrical safety, mechanical protection, and full IEC compatibility for industrial machinery and power distribution systems.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Series: MX (Enclosed Socket Series)
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-F254-6 |
| Product Type | Enclosed Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating enclosure |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A 5-pin IP44 enclosed industrial socket is widely used in:
- Three-phase industrial machinery with neutral requirement
- Factories and workshops
- Power distribution boxes
- Construction and maintenance sites
- Temporary and permanent industrial installations
FAQ
What is the advantage of a 5-pin industrial socket?
A 5-pin (3P+N+E) configuration provides an additional neutral conductor, making it suitable for equipment requiring both three-phase and single-phase loads.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with all corresponding 32A 5-pin IEC 60309 industrial plugs.
Is IP44 sufficient for industrial use?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against dust and water splashes is required.
Why Choose CHBEB MX Series?
- Complete MX enclosed socket range from 16A to 125A
- Strict IEC 60309 compliance
- Durable enclosure for enhanced protection
- OEM and customization services available
- Reliable manufacturer for global industrial markets
