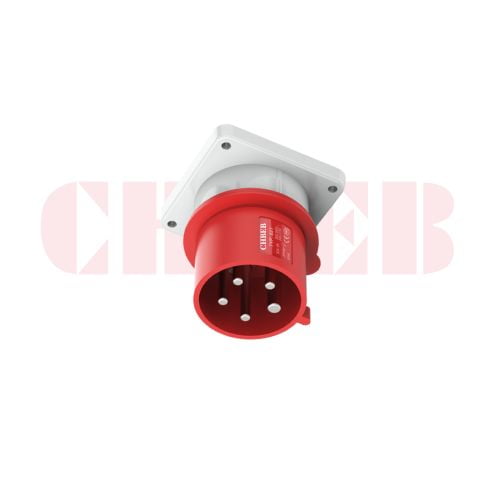

Product Overview
The CHBEB 32A 5-Pin Appliance Inlet is designed in compliance with IEC 60309 standards, providing a reliable fixed power input solution for three-phase industrial equipment requiring neutral connection.
With a rated current of 32A, rated voltage of 400V, 5-pin configuration (3P+N+E), and IP44 protection, this appliance inlet ensures safe and stable power transmission in indoor and light industrial environments. The red color coding and 6h clock position prevent incorrect connections and guarantee voltage compatibility.
Its panel-mounted structure allows permanent installation on electrical equipment, control panels, and power distribution systems.
What Is a 32A 5-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 32A 5-pin appliance inlet is an IEC 60309 standardized male connector mounted on electrical equipment, designed to receive 400V three-phase power with neutral and earth.
It is widely used in industrial systems that require both three-phase and single-phase loads.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 5-Pin (3P+N+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-821 |
| Product Type | Appliance Inlet |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 5P (3P+N+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Three-phase industrial equipment with neutral connection
- Electrical control cabinets
- Power distribution systems
- Industrial machinery with mixed loads
- Indoor and light industrial environments
FAQ
Why choose a 5-pin appliance inlet?
A 5-pin appliance inlet includes a neutral conductor, making it suitable for systems that require both three-phase and single-phase power.
Is IP44 sufficient for industrial use?
IP44 is suitable for indoor and semi-protected environments where resistance to solid objects and water splashes is required.
Is this inlet compatible with IEC 60309 32A red plugs?
Yes. This appliance inlet fully complies with IEC 60309 standards and is compatible with standard 32A 400V red industrial plugs.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet product range
- Current ratings from 16A to 125A
- IP44 and IP67 protection options available
- High-quality H59 brass contact pins
- OEM and customization services supported
