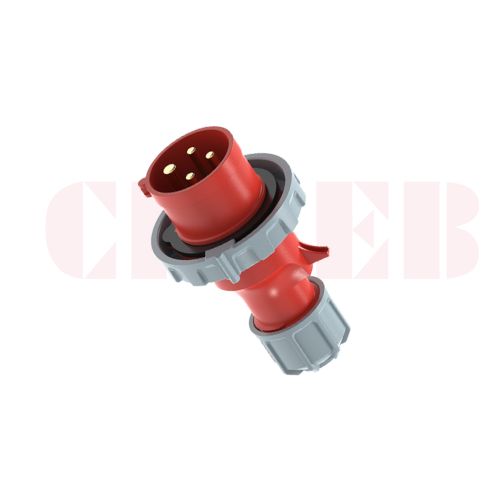

The Harmony Series 32A/4P-MXS3-A246-6 IP67 400V Industrial Plug is engineered in full compliance with IEC 60309 standards and is intended for 400V three-phase four-wire systems (L1, L2, L3, PE).
Its red color coding ensures proper voltage matching and prevents mismatched connections across different voltage classes.
As an IP67-rated model in the Harmony lineup, the A246-6 offers complete dust protection and high-level water resistance, including temporary submersion.
It features a flame-retardant PA66 housing, nickel-plated copper pins, and a reinforced twist-lock mechanism that ensures stable electrical performance and long-term durability even in harsh environments.
⭐ Key Features
Rated Current: 32A
Rated Voltage: 400V (Red-coded, three-phase)
Poles: 4P (L1, L2, L3, PE)
IP67 protection: waterproof, dustproof, submersible
Compliant with IEC 60309 international standards
Flame-retardant PA66 high-strength housing
Nickel-plated copper pins for excellent conductivity & corrosion resistance
Reinforced cable gland with strong tensile resistance
Harmony twist-lock design for secure, vibration-proof connection
⭐ Typical Applications
Three-phase industrial machinery
Construction site temporary power
Port & dock installations
Stage power distribution (lighting & audio)
Pump stations / water treatment equipment
Industrial distribution boards and machinery outlets
Outdoor & mobile power systems
