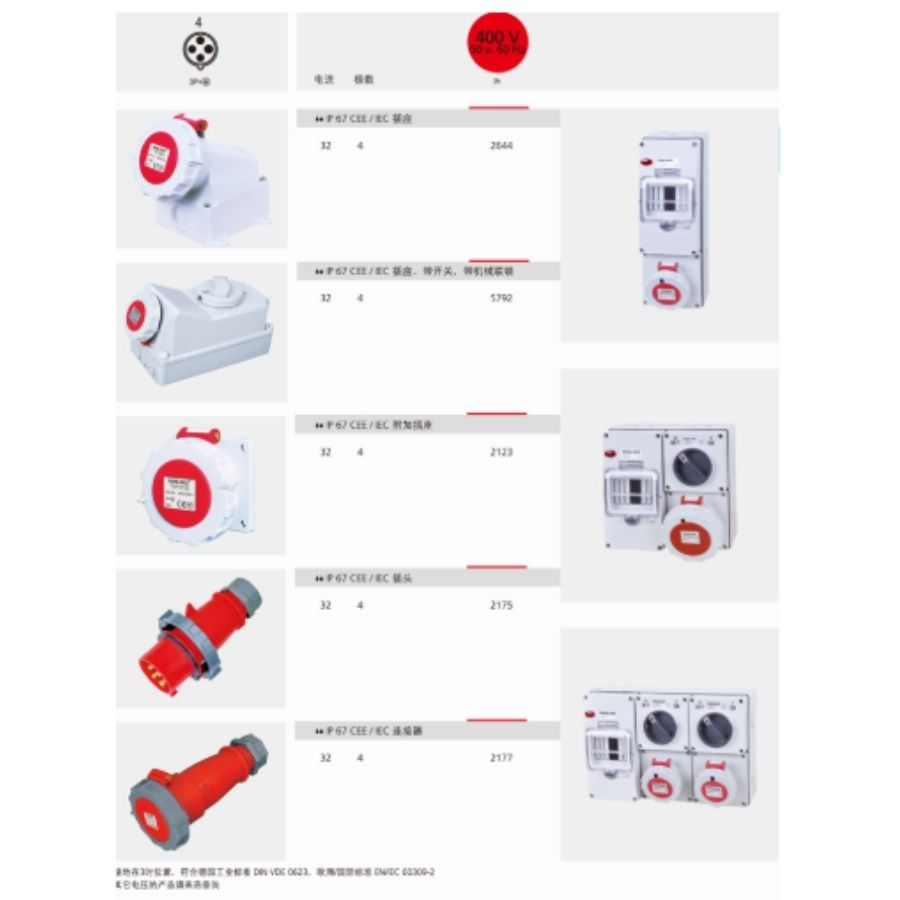

Product Overview
The 32A 4-pin panel mounted industrial socket is specially designed for refrigerated container (reefer) power supply applications, complying with IEC 60309 standards.
With a rated current of 32A, rated voltage of 400V, IP67 protection, and a dedicated 3H clock position, this socket ensures safe and reliable power connection for refrigeration equipment.
Its panel mounted design allows secure installation on electrical enclosures, making it suitable for harsh outdoor environments such as ports, logistics yards, and cold-chain facilities.
What Is a 32A 4-Pin Reefer Container Socket?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin reefer container socket is an IEC 60309 compliant panel mounted connector with a 3H clock position, specifically designed to supply 400V power to refrigerated containers and cold storage equipment.
The 3H configuration prevents incorrect connections and ensures compatibility with standard refrigerated container power systems.
Key Specifications
- Rated Current: 32A
- Poles: 4P
- Rated Voltage: 400V
- Standard: IEC 60309
- Protection Rating: IP67
- Clock Position: 3H
- Mounting Type: Panel Mounted
- Special Application: Refrigerated Containers
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Current | 32A |
| Number of Poles | 4P |
| Rated Voltage | 400V |
| Standard | IEC 60309 |
| Protection Rating | IP67 |
| Clock Position | 3H |
| Mounting Type | Panel Mounted |
| Contact Material | H59 Brass |
Applications
- Refrigerated containers (reefer containers)
- Cold chain logistics facilities
- Ports and container terminals
- Cold storage warehouses
- Outdoor industrial power distribution
