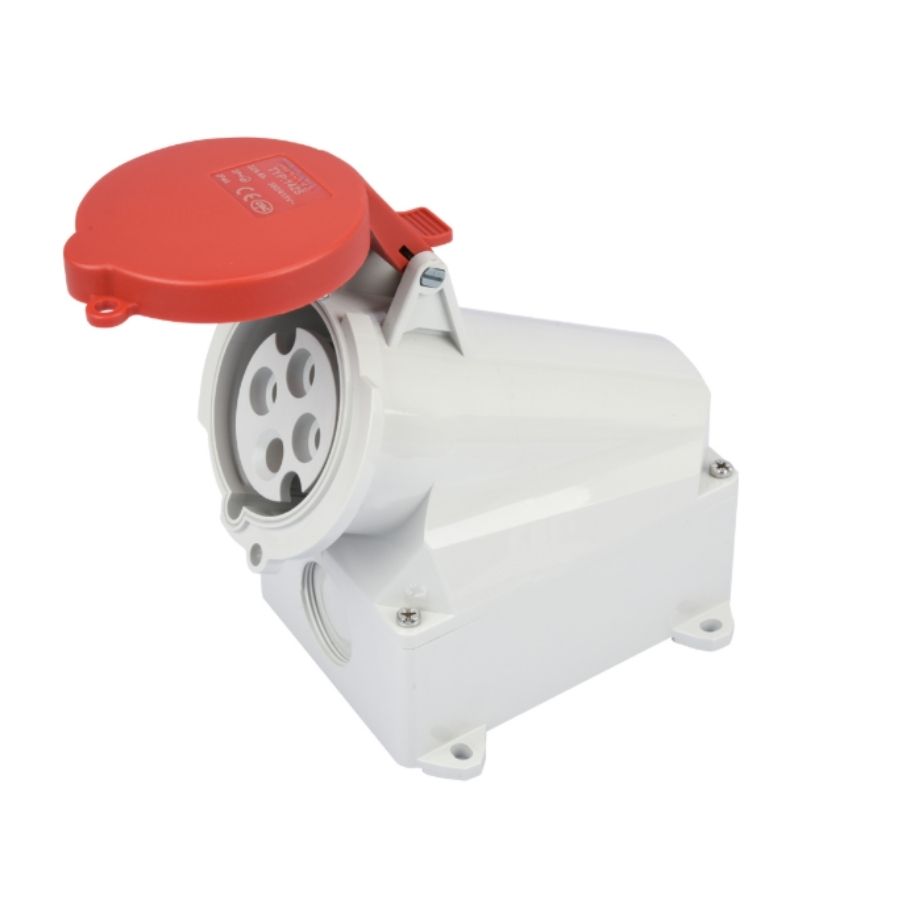

Product Overview
The CHBEB 32A 4-Pin Industrial Socket is designed and manufactured in accordance with IEC 60309 standards, providing safe and reliable three-phase power connections for industrial and commercial electrical applications.
With a rated current of 32A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection, this industrial socket ensures stable performance against dust and water splashes. The red color coding and 6h clock position clearly identify 400V three-phase power systems and help prevent incorrect connections.
It is widely used in industrial power distribution systems, machinery connections, workshops, construction sites, and temporary or fixed electrical installations.
What Is a 32A 4-Pin Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin industrial socket is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity for industrial and commercial electrical equipment with higher current demand.
It features a 3P+E pin configuration with a 6h clock position, ensuring correct phase alignment, reliable grounding, and full compatibility with matching IEC 60309 industrial plugs.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Standard: IEC 60309
- Application: Three-phase industrial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-1425 |
| Product Type | Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 4-pin IEC 60309 industrial socket is commonly used in:
- Three-phase industrial machinery
- Industrial power distribution systems
- Construction sites and workshops
- Generators and electrical control panels
- Temporary and fixed industrial installations
FAQ
What is the difference between 4-pin and 5-pin industrial sockets?
4-pin industrial sockets provide three-phase power with earth (3P+E), while 5-pin sockets include an additional neutral conductor (3P+N+E) for applications that require neutral connection.
Is this socket compatible with IEC 60309 industrial plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 4-pin IEC 60309 industrial plugs.
Is IP44 suitable for industrial environments?
IP44 protection provides resistance against solid objects and water splashes, making it suitable for indoor and semi-outdoor industrial applications.
Why Choose CHBEB?
- Over 20 years of experience in industrial electrical products
- Strict quality control and current load testing
- Full IEC 60309 standard compliance
- Stable production capacity for bulk orders
- OEM and customization services available
