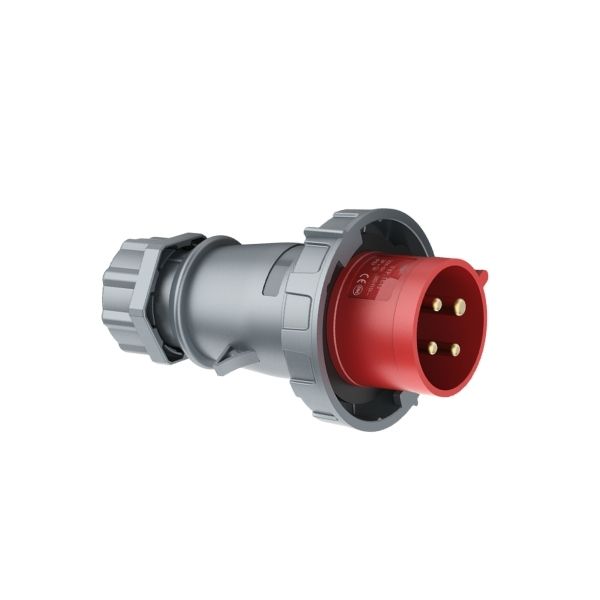

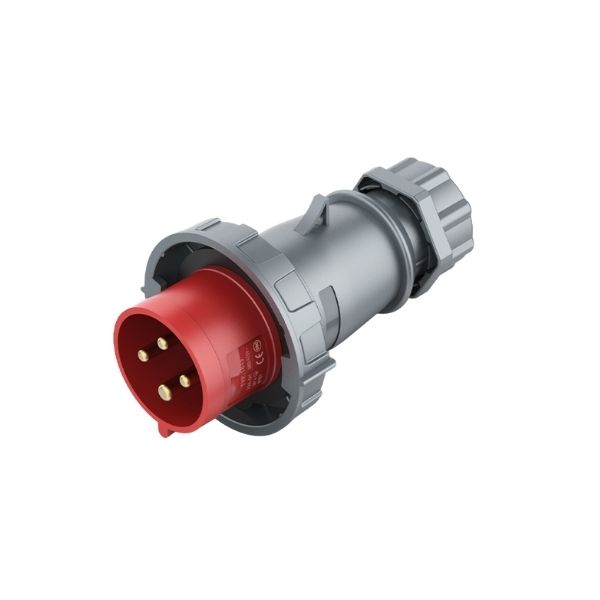

Product Overview
The CHBEB 32A 4-pin industrial plug is designed for reliable power connections in accordance with IEC 60309 standards.
With a rated current of 32A and rated voltage of 400V, this plug is suitable for three-phase industrial power systems requiring stable and secure electrical connections.
Its split-type structure and IP67 protection rating provide excellent sealing performance, making it suitable for harsh industrial and outdoor environments.
What Is a 32A 400V 4-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 400V 4-pin industrial plug is an IEC 60309 standardized connector designed for three-phase power distribution, providing safe and reliable electrical connections for industrial equipment.
It is commonly used in industrial machinery and power distribution systems where higher voltage and durability are required.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (4P)
- Protection rating: IP67
- Structure: Split Type
- Clock position: 6H
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-164a |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP67 |
| Structure | Split Type |
| Clock Position | 6H |
| Pin Material | H59 Brass |
Applications
The CHBEB 32A 4-pin split-type industrial plug is designed for medium to high power industrial applications requiring reliable three-phase connections and high environmental protection.
- Three-phase industrial machinery and equipment
- Factory and workshop power distribution systems
- Construction sites and temporary power installations
- Outdoor and mobile industrial equipment
- Environments requiring IP67 dust and water protection
