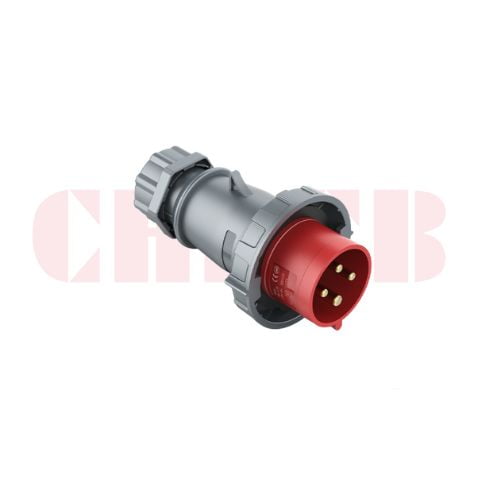

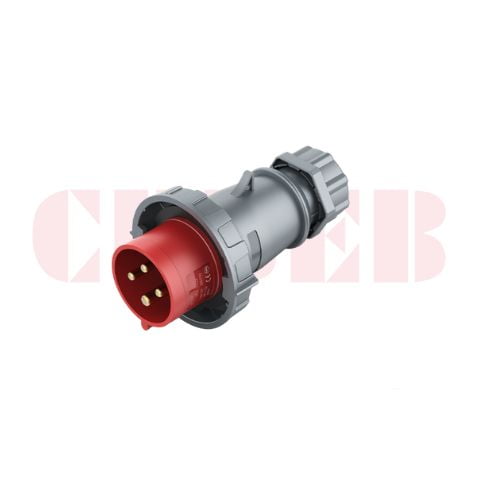

Product Overview
The CHBEB 32A 4-Pin Industrial Plug is designed in accordance with IEC 60309 standards to provide safe and reliable power connections for high-load industrial and commercial applications.
With a rated current of 32A, rated voltage of 400V, IP67 protection, and a defined 6h clock position, this plug ensures correct orientation, stable electrical performance, and excellent resistance to dust and water ingress in harsh environments.
The plug features a split-type housing design, allowing faster installation, easier wiring, and improved maintenance efficiency, making it ideal for on-site assembly and frequent cable termination.
What Is a 32A 4-Pin Industrial Plug?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin industrial plug is a standardized three-phase power connector defined by IEC 60309, designed to supply 400V power for industrial and commercial electrical equipment.
It features a 3P+E pin configuration with a specified 6h clock position, ensuring reliable grounding, correct alignment, and prevention of incorrect connections.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Structure: Split-type housing
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-152a |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Structure | Split-Type Housing |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
- High-load three-phase industrial machinery
- Power distribution systems and extension cables
- Construction sites and temporary power installations
- Outdoor and harsh-environment applications
- Applications requiring fast wiring and maintenance
