Product Overview

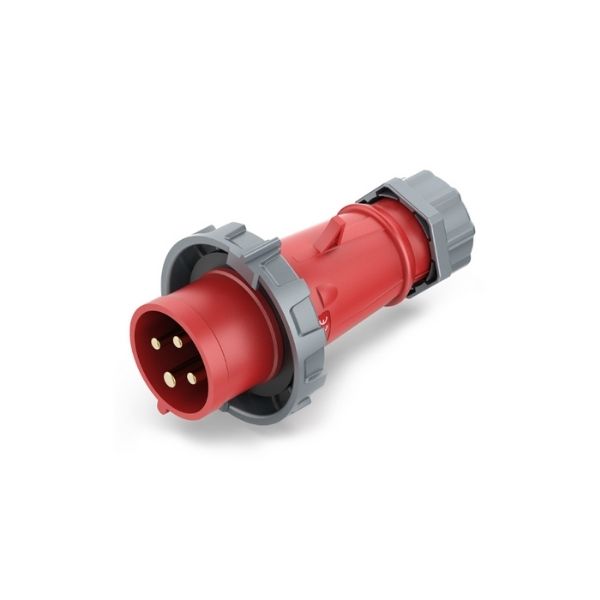

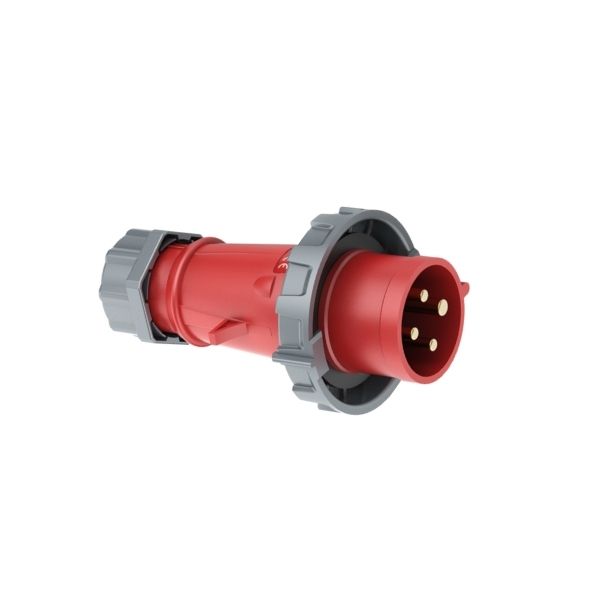

The CHBEB 32A industrial plug is designed for reliable power connection in demanding environments requiring high ingress protection.
Featuring a 4-pin configuration and 400V rating, this plug supports stable three-phase power transmission for industrial control and distribution systems.
With an IP67 protection rating, it is suitable for applications exposed to moisture, dust, and outdoor conditions.
What Is a 32A 4-Pin Industrial Plug?
A 32A 4-pin industrial plug is a heavy-duty electrical connector designed for three-phase power systems, delivering up to 32 amperes at 400 volts with secure phase and earth connections for industrial power distribution.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (4P)
- Clock position: 3H
- Protection rating: IP67
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-2175 |
| Product Type | Industrial Plug |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P |
| Clock Position | 3H |
| Protection Rating | IP67 |
| Pin Material | H59 Brass |
| Application Type | Distribution Box (Reefer Container) |
Applications
This 32A 4-pin industrial plug is specifically designed for power distribution systems used in refrigerated containers and industrial distribution boxes.
- Reefer container power distribution boxes
- Cold chain logistics and refrigerated transport systems
- Industrial control cabinets requiring IP67 protection
- Outdoor or harsh-environment power connections
- Three-phase power systems with 3H clock position requirement
