Product Overview

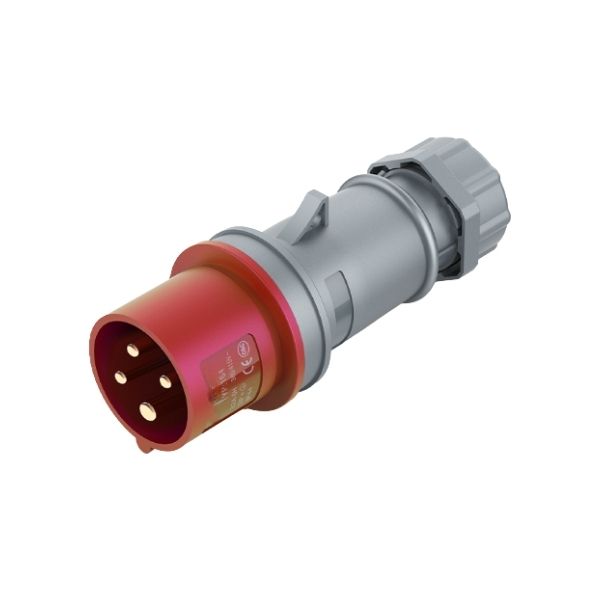

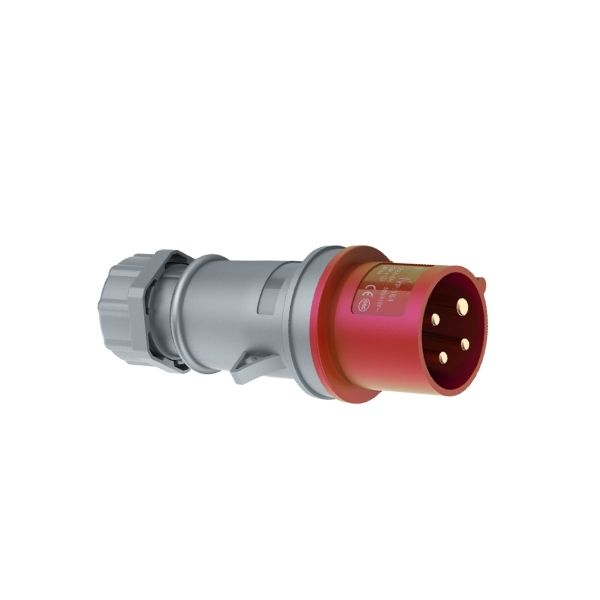

The CHBEB 32A 4-Pin Industrial Plug adopts a split-type housing design and is manufactured in accordance with IEC 60309 standards, providing safe and reliable power connections for industrial and commercial applications.
With a rated current of 32A, rated voltage of 400V, IP44 protection, and a defined 6h clock position, this plug ensures correct phase alignment, stable current transmission, and protection against splashing water.
The split-type structure allows flexible cable installation and easy on-site assembly, making it suitable for industrial extension cables and mobile power systems.
What Is a 32A 4-Pin Split-Type Industrial Plug?
A 32A 4-pin split-type industrial plug is a standardized IEC 60309 power connector designed to supply 400V three-phase electricity for industrial equipment.
It features a separable housing structure and a 6h clock position, ensuring reliable grounding, correct connection, and safe operation in industrial power systems.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (4P)
- Protection rating: IP44
- Design type: Split-type industrial plug
- Clock position: 6h
- Standard: IEC 60309
- Application: Industrial and commercial power connection
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-164 |
| Product Type | Industrial Plug (Split-Type) |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Pin Material | H59 Brass |
| Standard | IEC 60309 |
Applications
The CHBEB 32A 4-pin split-type industrial plug is commonly used in applications requiring high current capacity and flexible wiring, including:
- Industrial extension cables and mobile power leads
- Three-phase industrial machinery and equipment
- Temporary power supply systems on construction sites
- Workshop and maintenance power connections
- Commercial and light industrial electrical installations
