Product Overview

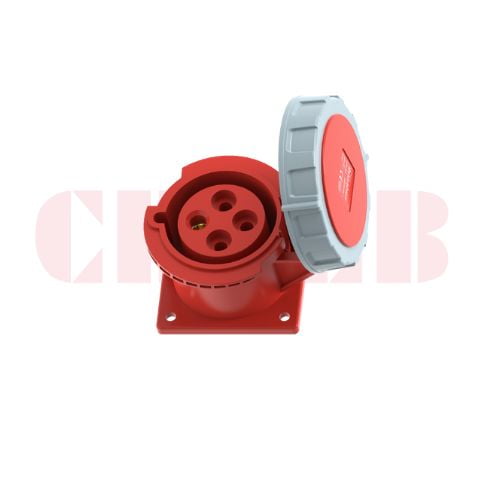

The CHBEB MX Series 32A 4-Pin Flanged Industrial Socket is manufactured in accordance with IEC 60309 standards and designed for secure panel-mounted power connections in demanding industrial environments.
Featuring a rated current of 32A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP67 protection, this socket provides reliable three-phase power distribution with full protection against dust and temporary water immersion. The red color coding and 6h clock position ensure correct voltage identification and prevent incorrect connections.
Its flanged mounting design allows stable installation on control panels, distribution boxes, and industrial equipment, making it ideal for fixed and semi-fixed applications.
What Is a 32A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with earth, designed for panel mounting and used to safely distribute 400V industrial power.
It ensures stable phase transmission, reliable grounding, and safe operation in harsh industrial environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP67
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B246-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP67 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP67 4-pin flanged industrial socket is widely used in:
- Three-phase industrial machinery
- Outdoor power distribution systems
- Construction sites and infrastructure projects
- Control panels and electrical enclosures
- Factories with high moisture or dust exposure
FAQ
What does a 4-pin (3P+E) socket mean?
A 4-pin socket provides three live phases and one earth connection, suitable for three-phase equipment without neutral.
Is IP67 protection necessary?
IP67 protection is ideal for harsh and outdoor environments, offering complete dust protection and resistance to temporary water immersion.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Reliable structure for fixed industrial installations
- OEM and customization services available
