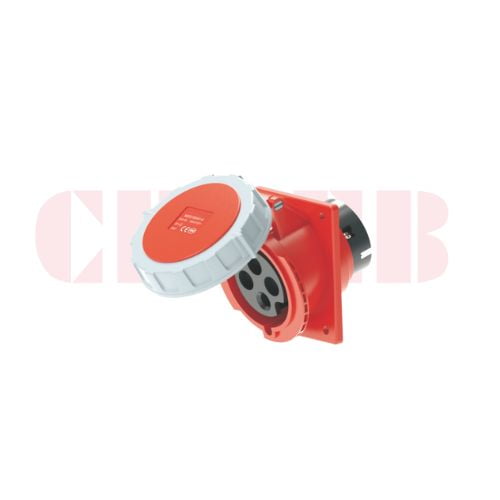

Product Overview
The CHBEB MX Series 32A 4-Pin Flanged Industrial Socket is manufactured in accordance with IEC 60309 standards and designed for reliable panel-mounted power connections in industrial environments.
With a rated current of 32A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection, this socket provides stable three-phase power distribution and protection against solid objects and water splashes. The red color coding and 6h clock position ensure correct voltage identification and safe connections.

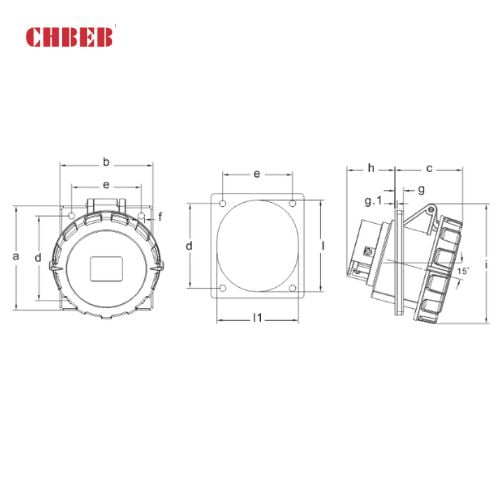

The flanged mounting design allows secure installation on panels, enclosures, and industrial equipment, making it suitable for fixed and semi-fixed power distribution applications.
What Is a 32A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet without neutral, designed for panel mounting and used to safely distribute 400V industrial power.
It ensures stable phase transmission, reliable grounding, and safe operation in industrial applications that do not require a neutral conductor.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B2461-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP44 4-pin flanged industrial socket is widely used in:
- Three-phase equipment without neutral requirement
- Industrial motors and machinery
- Control panels and distribution boxes
- Factories and workshops
- Fixed industrial power installations
FAQ
When should I choose a 4-pin socket?
A 4-pin socket is suitable for three-phase equipment that does not require a neutral conductor, such as motors and heavy industrial machinery.
Is IP44 sufficient for industrial use?
IP44 protection is suitable for indoor and semi-outdoor environments where protection against solid objects and water splashes is required.
Is this socket compatible with IEC 60309 plugs?
Yes. This socket fully complies with IEC 60309 standards and is compatible with corresponding 32A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict IEC 60309 compliance
- Stable structure for panel-mounted installations
- OEM and customization services available
