Product Overview

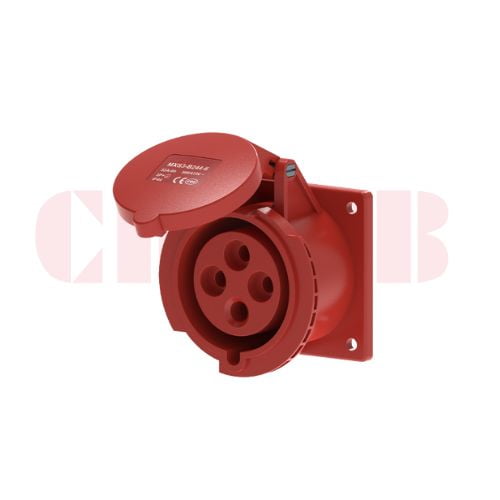

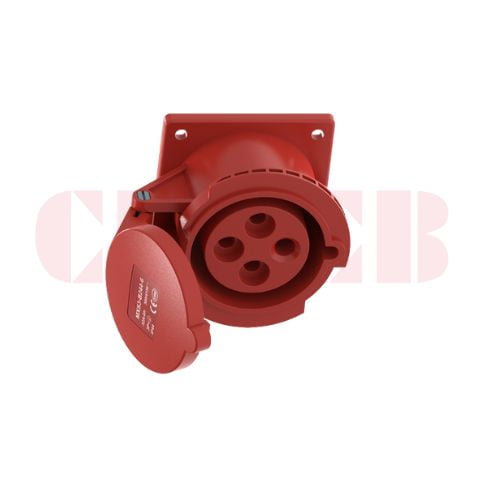

The CHBEB MX Series 32A 4-Pin Flanged Industrial Socket is designed in accordance with IEC 60309 standards and developed for secure panel-mounted three-phase industrial power connections.
With a rated current of 32A, rated voltage of 400V, 4-pin (3P+E) configuration, and IP44 protection rating, this socket provides reliable three-phase power distribution with protection against solid objects and water splashes. The red color coding and 6h clock position ensure correct voltage identification and safe operation.
Its flanged mounting structure allows stable installation on panels, enclosures, and industrial equipment, making it ideal for fixed electrical systems.
What Is a 32A 4-Pin Flanged Industrial Socket?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin flanged industrial socket is an IEC 60309 standardized three-phase power outlet with earth, designed for panel mounting and used to safely distribute 400V industrial power in fixed installations.
It ensures stable phase transmission, reliable grounding, and long-term operational safety in industrial environments.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Flanged / Panel Mounted
- Series: MX
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | MXS3-B244-6 |
| Product Type | Flanged Industrial Socket |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
The CHBEB MX Series 32A IP44 4-pin flanged industrial socket is widely used in:
- Three-phase industrial machinery
- Electrical control panels
- Factories and workshops
- Industrial equipment power interfaces
- Fixed indoor and semi-outdoor installations
FAQ
What is the difference between 4-pin and 5-pin sockets?
A 4-pin socket provides three phases and earth, suitable for equipment that does not require a neutral conductor.
Is IP44 suitable for industrial use?
Yes. IP44 protection is suitable for indoor and light outdoor industrial environments where water splashes may occur.
Is this socket compatible with IEC 60309 plugs?
Yes. This product fully complies with IEC 60309 standards and is compatible with corresponding 32A 4-pin IEC industrial plugs.
Why Choose CHBEB MX Series?
- Complete MX flanged socket range from 16A to 125A
- Available in IP44 and IP67 protection levels
- Strict
