Product Overview

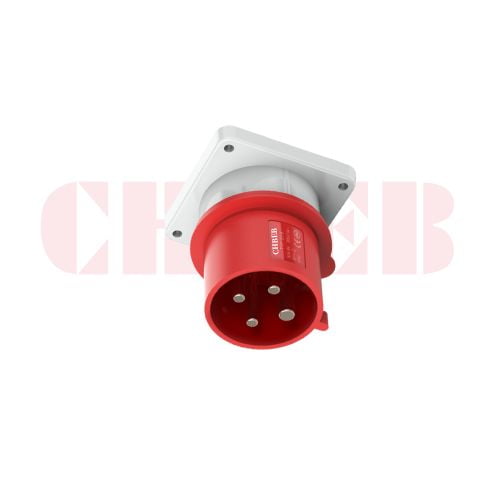

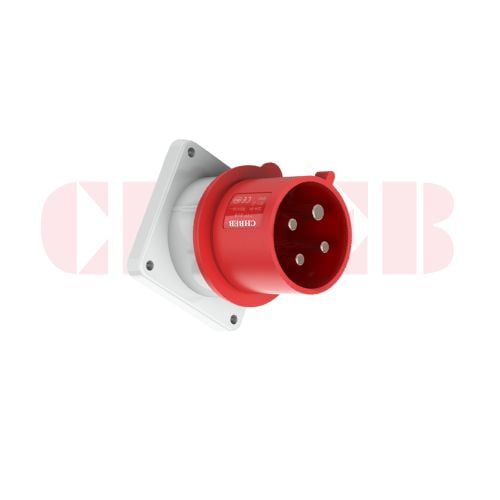

The CHBEB 32A 4-Pin Appliance Inlet is designed and manufactured in accordance with IEC 60309 standards, providing a secure and stable fixed power input solution for three-phase industrial equipment.
With a rated current of 32A, rated voltage of 400V, 4-pin configuration (3P+E), and IP44 protection, this appliance inlet ensures safe and reliable power connection in indoor and light industrial environments. The red color coding and 6h clock position guarantee correct voltage identification and prevent incorrect connections.
Its panel-mounted design allows permanent installation on electrical equipment, control panels, and power distribution systems.
What Is a 32A 4-Pin Appliance Inlet?
⭐ Google Featured Snippet Core Definition
A 32A 4-pin appliance inlet is an IEC 60309 standardized male connector installed on electrical equipment, designed to receive 400V three-phase power with earth connection.
It is commonly used as a fixed power inlet for industrial machinery and electrical systems requiring reliable three-phase power supply.
Key Specifications
- Rated current: 32A
- Rated voltage: 400V
- Pin configuration: 4-Pin (3P+E)
- Protection rating: IP44
- Clock position: 6h
- Color code: Red (400V)
- Mounting type: Panel Mounted / Appliance Inlet
- Standard: IEC 60309
Technical Parameters
| Item | Specification |
|---|---|
| Model | TYP-819 |
| Product Type | Appliance Inlet |
| Rated Current | 32A |
| Rated Voltage | 400V |
| Poles | 4P (3P+E) |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Color | Red |
| Pin Material | H59 Brass |
| Housing Material | Industrial-grade insulating plastic |
| Standard | IEC 60309 |
Applications
- Three-phase industrial machinery
- Electrical control cabinets
- Power distribution equipment
- Factories and workshops
- Indoor and light industrial environments
FAQ
What is the difference between 3-pin and 4-pin appliance inlets?
A 4-pin appliance inlet provides three-phase power with earth (3P+E), suitable for three-phase equipment without neutral connection.
Is IP44 suitable for industrial use?
IP44 protection is suitable for indoor installations and environments where protection against solid objects and water splashes is required.
Is this inlet compatible with IEC 60309 32A red plugs?
Yes. This appliance inlet fully complies with IEC 60309 standards and matches 32A 400V red industrial plugs.
Why Choose CHBEB?
- Complete IEC 60309 appliance inlet product range
- Current ratings from 16A to 125A
- IP44 and IP67 protection options available
- High-quality H59 brass contact pins
- OEM and customization services supported
